Thread Type: SAE (Society of Automotive Engineers) Boss male thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

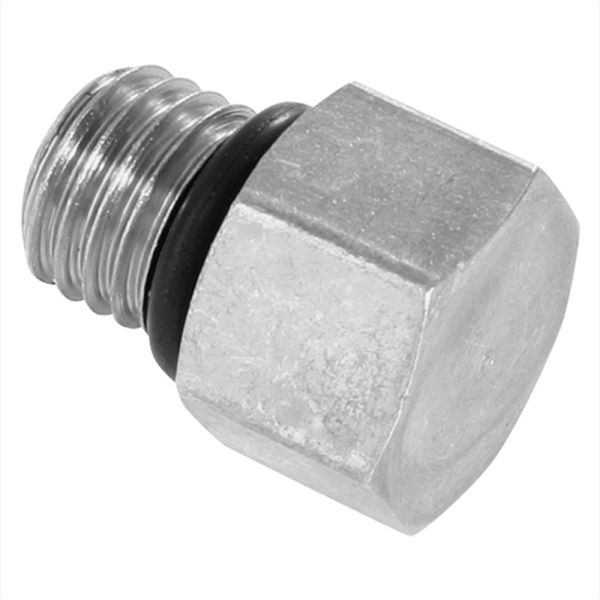

This SAE Boss solid plug is equipped with an integrated O-Ring, providing a secure and leak-free solution for sealing unused hydraulic ports. Manufactured from high-quality mild steel by Burnett & Hillman to BS EN 10277 standards, it delivers reliable pressure resistance and protection in demanding hydraulic and pneumatic systems. The O-Ring ensures superior sealing compared to standard plugs, making it suitable for high-pressure applications.
Key Features & Benefits
Durable Construction: Strong mild steel for long-lasting use
Thread Type: SAE Boss male thread for secure port sealing
Enhanced Sealing: Integrated O-Ring ensures superior leak prevention
Leak-Proof Closure: Provides a tight, pressure-resistant seal for unused ports
Standard Compliance: Manufactured to BS EN 10277 for precise threading and fit
Versatile Application: Ideal for hydraulic and pneumatic systems requiring SAE Boss fittings
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
L1 (")
O/L (")

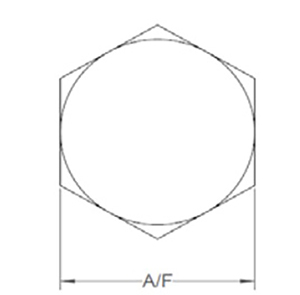

A/F (")
380387
19162
5/16
0.297
0.577
0.437
380388
19150
7/16
0.36
0.67
0.562
380389
19151
1/2
0.36
0.67
0.625
380390
19152
9/16
0.391
0.73
0.687
380391
19153
3/4
0.438
0.8
22mm
380392
19154
7/8
0.5
0.84
1
380393
19155
1 1/16
0.594
1.09
1.25
380394
19156
1 3/16
0.594
1.09
1.375
380395
19157
1 5/16
0.594
1.12
1.5
380396
19158
1 5/8
0.594
1.2
50mm
380397
19159
1 7/8
0.594
1.27
55mm
380398
19160
2 1/2
0.594
1.43
70mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
