Thread Type: SAE (Society of Automotive Engineers) Boss male thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

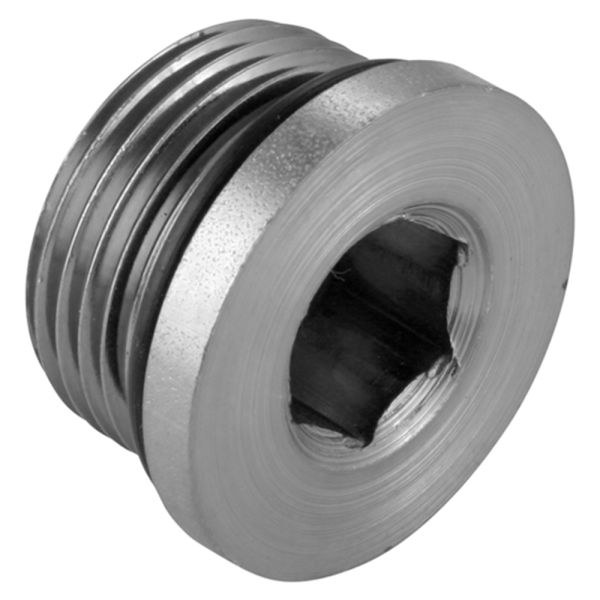

This SAE Boss socket-headed plug features an integrated O-Ring for superior sealing performance in hydraulic systems. Designed for easy installation and removal using a hex key, it provides a reliable, pressure-tight closure for unused SAE Boss hydraulic ports. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, this plug is ideal for high-pressure hydraulic and pneumatic applications requiring dependable leak protection.
Key Features & Benefits
Durable Construction: Made from robust mild steel for long-lasting reliability
Thread Type: SAE Boss male thread for secure port closure
Enhanced Sealing: Integrated O-Ring provides superior leak prevention
Socket Head Design: Allows quick and easy installation with a hex key
Standard Compliance: Produced to BS EN 10277 for precision threading and fit
Versatile Application: Suitable for hydraulic and pneumatic systems using SAE Boss fittings
Quality Manufacturing: ISO 9001-certified processes ensure consistent, high-quality products
Downloads
Burnett & Hillman Pressure Guide

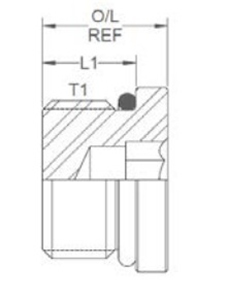

SKU
Product Code
T1 (")
L1 (")
O/L (")

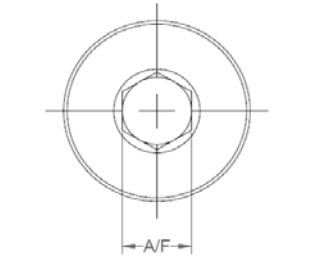

A/F (")
380379
7238-04
7/16
0.36
0.475
0.189
380380
7238-05
1/2
0.36
0.475
0.189
380381
7238-06
9/16
0.391
0.506
0.258
380382
7238-08
3/4
0.438
0.588
0.313
380383
7238-10
7/8
0.5
0.65
0.375
380384
7238-12
1 1/16
0.594
0.774
0.562
380385
7238-14
1 3/16
0.594
0.774
0.562
380386
7238-16
1 5/16
0.594
0.774
0.632
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
