Thread Type: ORFS (O-Ring Face Seal) female thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

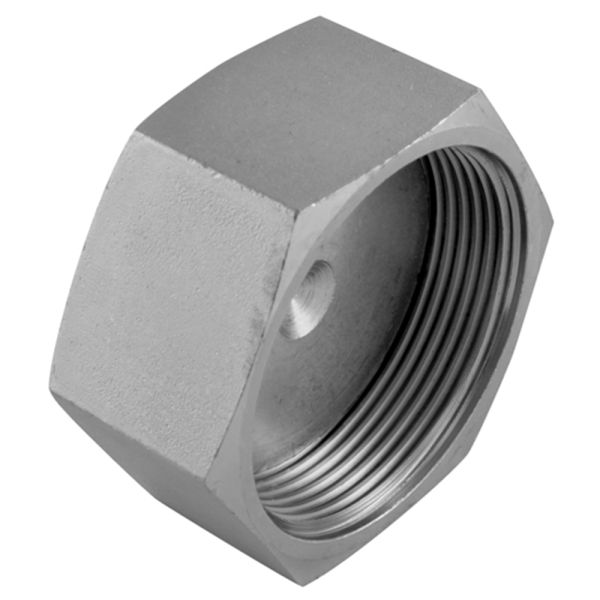

This ORFS blanking cap is designed to securely close and seal unused ORFS male hydraulic fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a reliable, leak-free solution for hydraulic and pneumatic systems. The cap is ideal for protecting ports during maintenance or isolating unused connections in high-pressure environments.
Key Features & Benefits
Durable Construction: High-quality mild steel for robust, long-lasting use
Thread Type: ORFS female thread for compatibility with ORFS male fittings
Leak-Proof Closure: Ensures secure blanking and pressure sealing
Protective Design: Prevents fluid leaks and contamination of unused ports
Standard Compliance: Manufactured to BS EN 10277 for precision threading
Versatile Application: Suitable for hydraulic and pneumatic systems using ORFS fittings
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide

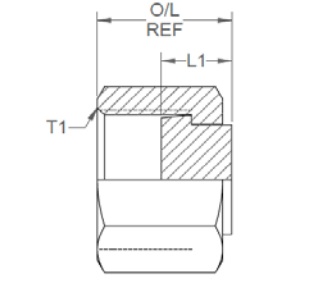

SKU
Product Code
T1 (")
L1 (")
O/L (")
A/F(")
381426
9129-04
9/16
0.34
0.66
0.687
381427
9129-06
11/16
0.37
0.75
0.812
381428
9129-08
13/16
0.47
0.86
0.938
381429
9129-10
1
0.47
1.02
1.125
381430
9129-12
1 3/16
0.53
1.125
1.375
381431
9129-16
1 7/16
0.59
1.165
1.625
381432
9129-20
1 11/16
0.59
1.165
1.875
381433
9129-24
2
0.59
1.165
2.250
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
