Thread Type: NPT (National Pipe Taper) male thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description
This NPT socket-headed plug is designed to seal unused hydraulic ports or fittings securely. Featuring a socket head for easy installation and removal with a hex key, it ensures a tight, leak-free closure. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it is ideal for hydraulic and pneumatic applications requiring a durable and pressure-tight port seal.
Thread Type: NPT male thread for tapered, secure sealing
Easy Installation: Socket head design allows quick fitting with a hex key
Leak-Proof Closure: Ensures reliable sealing of unused ports
Standard Compliance: Manufactured to BS EN 10277 for accurate, consistent threading
Versatile Application: Suitable for hydraulic and pneumatic systems using NPT fittings
Quality Manufacturing: ISO 9001-certified processes ensure consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

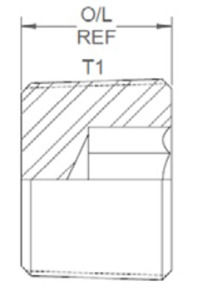

T1 (")
O/L (")

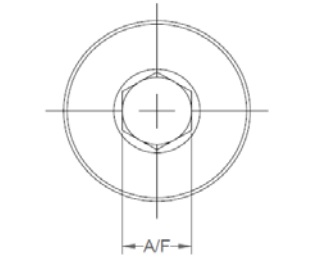

A/F (")
380363
09100/HD
1/8
0.29
0.188
380364
09101/HD
1/4
0.462
0.250
380365
09102/HD
3/8
0.45
0.315
380366
09103/HD
1/2
0.616
0.380
380367
09106/HD
1
0.795
0.625
