Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

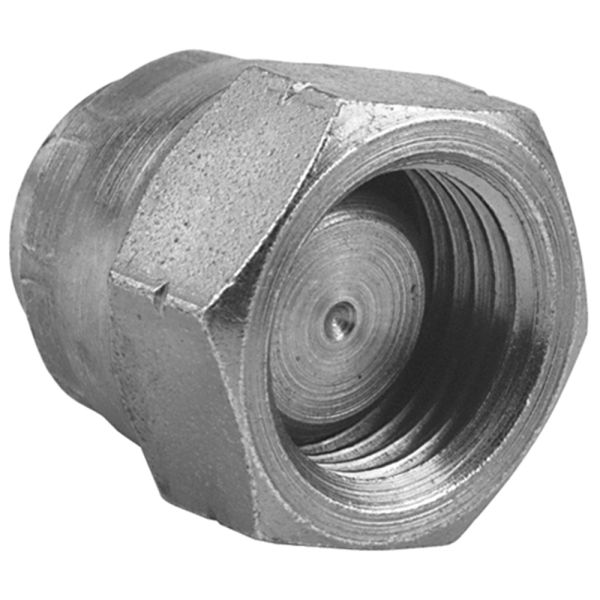

This metric swivel cap is designed to blank off and securely seal metric male hydraulic fittings. Featuring a swivel design for easy installation and removal, it prevents fluid leakage during system maintenance or when isolating unused connections. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, this cap delivers robust, leak-free performance for hydraulic and pneumatic systems.
Key Features & Benefits
Durable Construction: Strong mild steel for long-lasting reliability
Thread Type: Metric swivel female thread for compatibility with metric male fittings
Leak-Proof Closure: Ensures secure blanking of hydraulic ports and fittings
Swivel Design: Simplifies fitting and removal without twisting connected hoses
Standard Compliance: Manufactured to BS EN 10277 for precise threading
Versatile Application: Ideal for hydraulic and pneumatic systems using metric fittings
Quality Manufacturing: ISO 9001-certified production ensures consistent quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
L1 (")
O/L (")
A/F (mm)
380483
7M12
M12 x 1.5
0.6
0.795
17
380484
7M14
M14 x 1.5
0.67
0.82
19
380485
7M16
M16 x 1.5
0.641
0.87
22
380486
7M18
M18 x 1.5
0.692
0.87
24
380487
7M20
M20 x 1.5
0.692
0.87
27
380488
7M22
M22 x 1.5
0.702
0.91
27
