Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

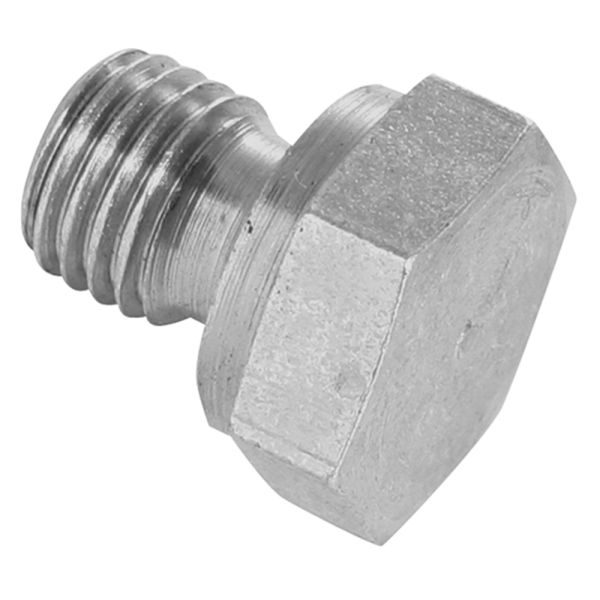

This metric solid plug features a 1mm pitch thread, designed for securely sealing unused hydraulic ports or fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it offers a robust, leak-proof closure suitable for hydraulic and pneumatic systems. The precision metric threading ensures a tight, reliable seal even in high-pressure applications.
Key Features & Benefits
Durable Construction: Made from high-quality mild steel for long-lasting reliability
Metric Threading: 1mm pitch for accurate and secure fit
Leak-Proof Design: Provides a pressure-tight closure for hydraulic connections
Standard Compliance: Manufactured to BS EN 10277 for precise, reliable threading
Versatile Application: Suitable for hydraulic and pneumatic systems requiring port sealing
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

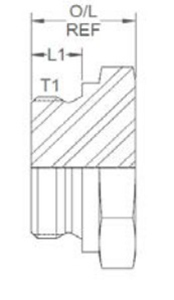

T1 (mm)
L1 (")
O/L (")

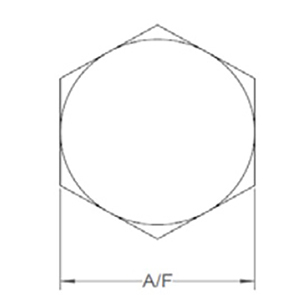

A/F (mm)
380342
09169
M8 x 1
0.315
0.531
14
380343
09179
M10 x 1
0.315
0.535
17
380344
09168
M12 x 1
0.354
0.669
19
