Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

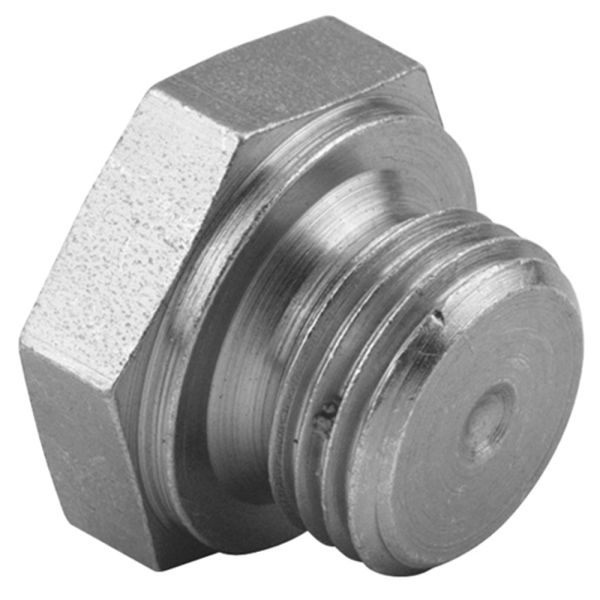

This metric solid plug with a 1.5mm pitch thread is designed to securely close off unused hydraulic ports or fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures a strong, leak-free seal for hydraulic and pneumatic systems. The precision metric threading provides accurate fitment and reliable sealing even in high-pressure applications.
Key Features & Benefits
Durable Construction: Robust mild steel ensures strength and long service life
Metric Threading: 1.5mm pitch for precise, secure fitting
Leak-Proof Seal: Designed to provide a tight, pressure-resistant closure
Standard Compliance: Manufactured to BS EN 10277 for accurate and consistent threading
Versatile Application: Suitable for hydraulic and pneumatic systems needing sealed ports
Quality Manufacturing: Produced under ISO 9001-certified processes for reliable performance
Downloads
Burnett & Hillman Pressure Guide

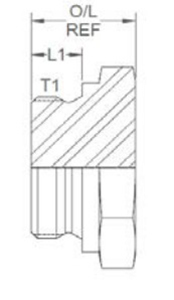

SKU
Product Code
T1 (mm)
L1 (")
O/L (")
A/F (mm)
380345
6M10
10
0.315
0.531
14
380346
6M12
12
0.354
0.669
17
380347
6M14
14
0.354
0.669
19
380348
6M16
16
0.354
0.669
22
380349
6M18
18
0.354
0.689
24
380350
6M20
20
0.354
0.689
27
380351
6M22
22
0.354
0.708
27
380352
6M24
24
0.354
0.708
30
380353
6M26
26
0.354
0.708
32
