Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

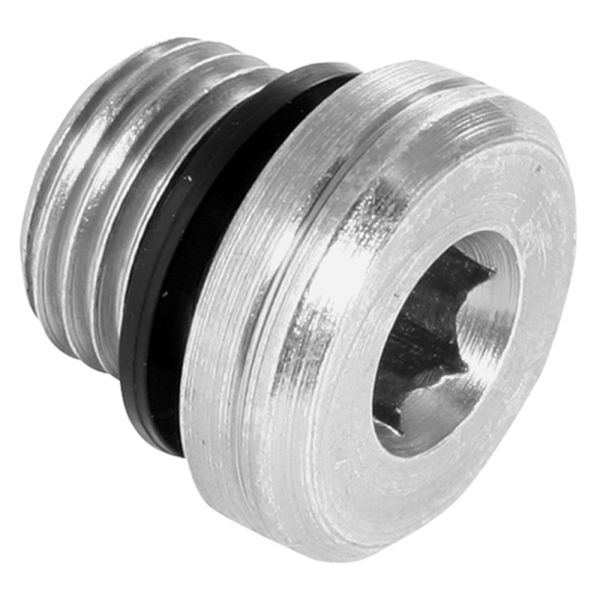

This metric socket-headed plug features an integrated 3869 seal, providing a secure, leak-free solution for sealing hydraulic ports. Manufactured from high-quality mild steel to BS EN 10277 standards by Burnett & Hillman, it ensures reliable performance under high-pressure conditions. The socket head allows easy installation and removal using a hex key, making it ideal for hydraulic and pneumatic applications requiring durable, sealed port closures.
Key Features & Benefits
Durable Construction: Robust mild steel for strength and long service life
Metric Threading: Designed for standard metric hydraulic ports
Integrated Seal: 3869 seal provides reliable, pressure-tight closure
Socket Head Design: Allows fast installation and removal with a hex key
Standard Compliance: Manufactured to BS EN 10277 for precision threading and fit
Versatile Application: Suitable for hydraulic and pneumatic systems requiring sealed ports
Quality Manufacturing: ISO 9001-certified processes ensure consistent, high-quality products
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

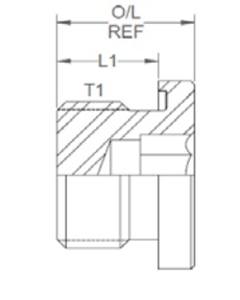

T1 (mm)
L1 (")
O/L (")

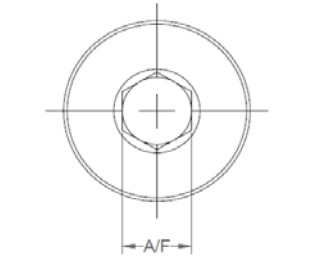

A/F (mm)
380358
3869-M10-SPG
10
0.315
0.472
5
380359
3869-M14-SPG
14
0.472
0.669
6
380360
3869-M16-SPG
16
0.472
0.669
8
380361
3869-M22-SPG
22
0.551
0.748
10
380362
3869-M26-SPG
26
0.63
0.85
12
