Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

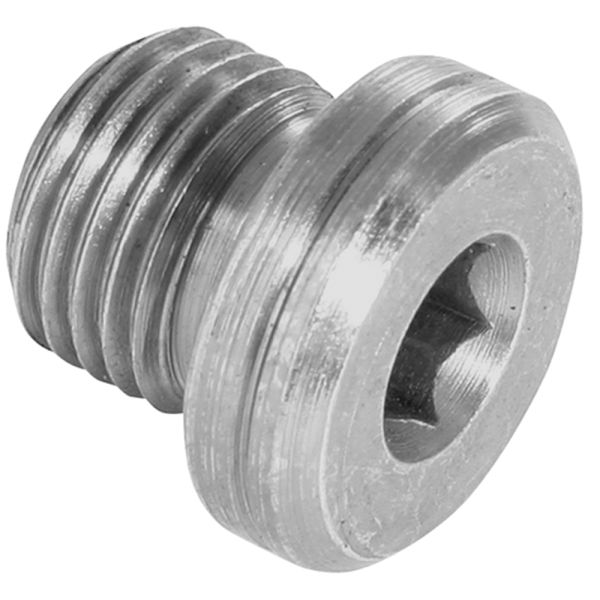

This metric socket-headed plug is designed for secure, leak-free sealing of hydraulic ports when used with a bonded seal. Manufactured from high-quality mild steel to BS EN 10277 standards by Burnett & Hillman, it features a socket head for easy installation and removal with a hex key. Ideal for hydraulic and pneumatic systems, it ensures a reliable pressure-tight closure under demanding conditions.
Key Features & Benefits
Durable Construction: High-quality mild steel for long-lasting reliability
Metric Threading: Compatible with standard metric hydraulic fittings
Bonded Seal Compatibility: Designed to work with bonded seals for a secure closure
Socket Head Design: Allows quick and easy installation with a hex key
Standard Compliance: Manufactured to BS EN 10277 for precise threading and fit
Versatile Application: Suitable for sealing unused ports in hydraulic and pneumatic systems
Quality Manufacturing: ISO 9001-certified processes ensure consistent product performance
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Thread Size (mm)

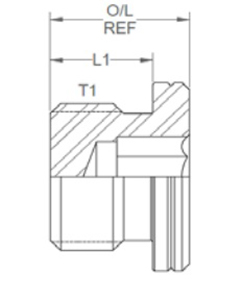

L1 (")
O/L (")

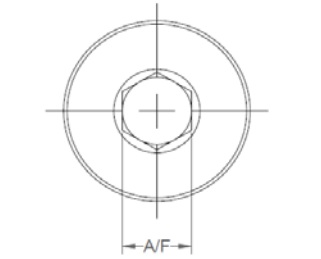

A/F (mm)
380354
09179-M10-SPG
M10 x 1
0.315
0.48
5
380355
09173-M14-SPG
M14 x 1.5
0.472
0.669
6
380356
09170-M16-SPG
M16 x 1.5
0.472
0.669
8
380357
09176-M22-SPG
M22 x 1.5
0.512
0.709
10
