Seal Type: 30° cone for JIS (Japanese Industrial Standard) sealing
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

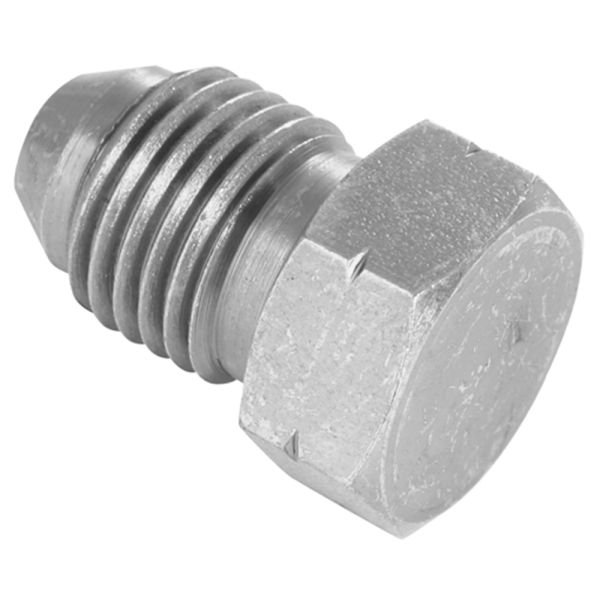

This JIS solid plug with a 30° cone sealing face and metric male thread is designed to securely close off unused hydraulic ports or fittings in JIS-compatible systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures a robust, leak-free closure. The 30° cone provides reliable metal-to-metal sealing, making it ideal for high-pressure hydraulic and pneumatic applications.
Key Features & Benefits
Durable Construction: High-quality mild steel for long-lasting reliability
Thread Type: Metric male threading designed for JIS-compatible fittings
Seal Type: 30° cone provides strong metal-to-metal pressure sealing
Leak-Proof Design: Ensures secure closure of unused hydraulic ports
Standard Compliance: Manufactured to BS EN 10277 for precision and accuracy
Versatile Application: Suitable for hydraulic and pneumatic systems using JIS fittings
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (mm)
L1 (")
O/L (")

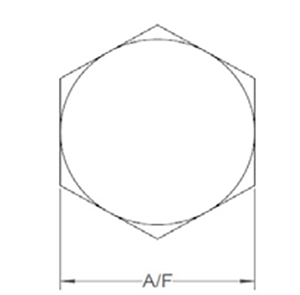

A/F (mm)
380409
9711-14
14
0.690
1.010
17
380410
9711-18
18
0.740
1.050
22
380411
9711-22
22
0.795
1.188
27
380412
9711-24
24
0.865
1.258
27
380413
9711-30
30
0.950
1.420
1.5"
