Thread Type: BSPP (British Standard Parallel Pipe) male thread
Seal Type: 30° cone for JIS (Japanese Industrial Standard) sealing
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

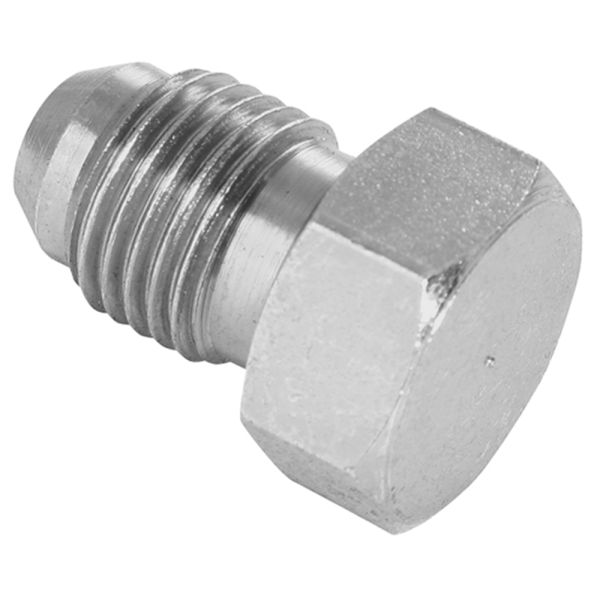

This JIS solid plug with a 30° cone sealing face and BSPP male thread is designed to securely close unused hydraulic ports or fittings in JIS-compatible systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it delivers a durable, leak-free closure. The 30° cone provides reliable metal-to-metal sealing, making it suitable for high-pressure hydraulic and pneumatic applications.
Key Features & Benefits
Durable Construction: High-quality mild steel ensures long service life
Thread Type: BSPP male threading designed for JIS connections
Seal Type: 30° cone ensures strong metal-to-metal pressure sealing
Leak-Proof Design: Provides secure closure for unused hydraulic ports
Standard Compliance: Manufactured to BS EN 10277 for precision and reliability
Versatile Application: Suitable for hydraulic and pneumatic systems with JIS fittings
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
L1 (")
O/L (")

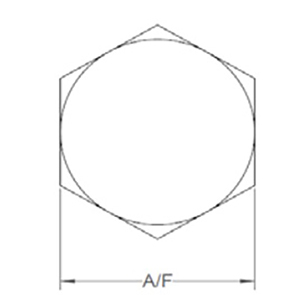

A/F (mm)
380405
7681-04
1/4
0.610
0.925
17
380406
7681-06
3/8
0.683
0.998
19
380407
7681-08
1/2
0.758
1.151
27
380408
7681-12
3/4
0.850
1.290
32
