Thread Type: JIC (Joint Industry Council) swivel female thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

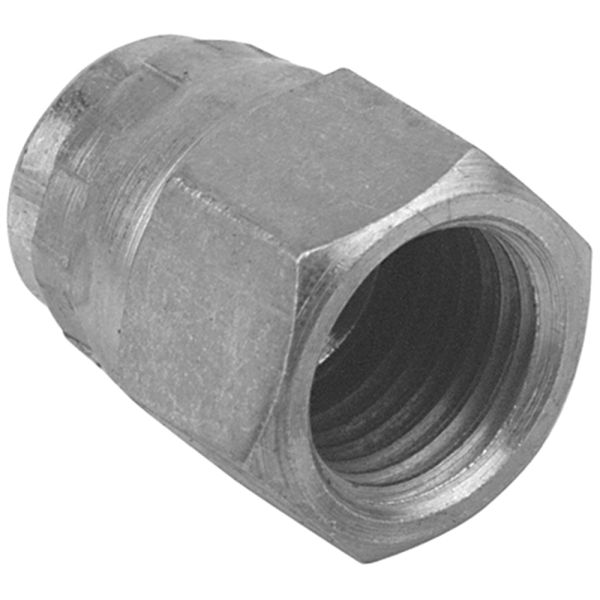

This JIC swivel cap features a 37° coned sealing face, designed to blank off and securely seal JIC male hydraulic fittings. The swivel female design allows easy installation and removal without twisting connected hoses, making it ideal for maintenance or isolating unused system connections. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a durable, leak-free closure suitable for high-pressure hydraulic applications.
Key Features & Benefits
Durable Construction: Robust mild steel for strength and long-lasting reliability
Thread Type: JIC swivel female thread for compatibility with JIC male fittings
Seal Type: 37° cone ensures secure, pressure-tight metal-to-metal sealing
Swivel Design: Enables easy fitting and removal without hose twisting
Leak-Proof Closure: Blanks off unused JIC hydraulic connections effectively
Standard Compliance: Manufactured to BS EN 10277 for precise and accurate threading
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide

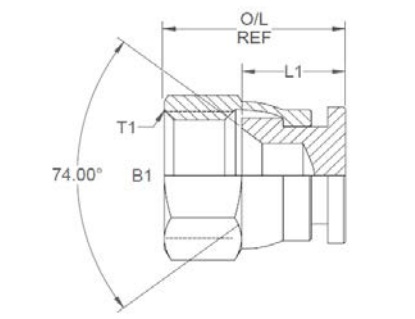

SKU
Product Code
T1 (")
L1 (")
O/L (")
A/F (")
381246
7J07
7/16
0.423
0.78
0.562
381247
7J08
1/2
0.429
0.815
0.625
381248
7J09
9/16
0.469
0.85
0.687
381249
7J12
3/4
0.588
1.035
0.875
381250
7J14
7/8
0.635
1.14
1
381251
7J17
1 1/16
0.677
1.26
1.25
381252
7J19
1 3/16
0.677
1.275
1.375
381253
7J21
1 5/16
0.735
1.333
1.5
381254
7J26
1 5/8
0.766
1.43
50mm
381255
7J30
1 7/8
0.875
1.56
55mm
381256
7J40
2 1/2
0.955
1.875
70mm
