Thread Type: JIC (Joint Industry Council) male thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

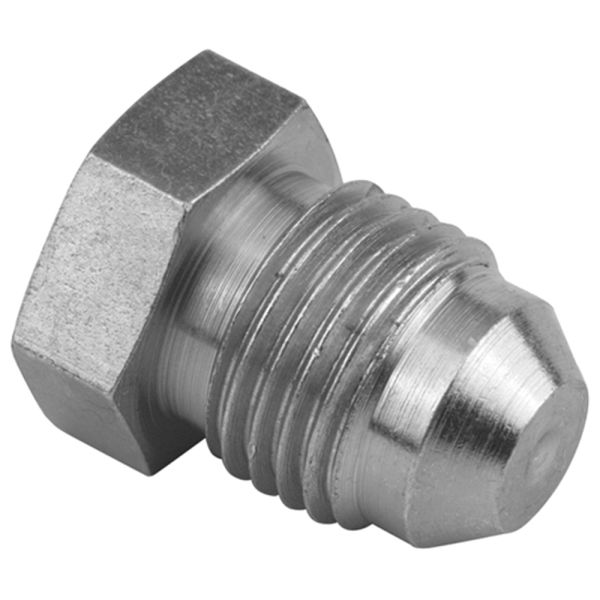

This JIC solid plug with a 37° cone sealing face is designed to securely close off unused hydraulic ports or fittings in JIC systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a robust, leak-proof closure. The 37° cone ensures reliable metal-to-metal sealing, making it suitable for high-pressure hydraulic and pneumatic applications.
Thread Type: JIC male thread with 37° cone for precise metal-to-metal sealing
Leak-Proof Design: Provides a secure, pressure-tight closure for unused ports
Standard Compliance: Manufactured to BS EN 10277 for accurate threading and fit
Versatile Application: Suitable for hydraulic and pneumatic systems using JIC fittings
Quality Manufacturing: ISO 9001-certified processes ensure consistent product reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
L1 (")
O/L (")

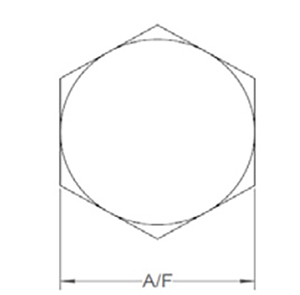

A/F (")
381234
6J05
5/16
0.448
0.7
0.437
381235
6J07
7/16
0.55
0.8
0.5
381236
6J08
1/2
0.55
0.8
0.562
381237
6J09
9/16
0.556
0.84
0.625
381238
6J12
3/4
0.657
0.94
0.812
381239
6J14
7/8
0.758
1.1
1
381240
6J17
1 1/16
0.864
1.28
1.125
381241
6J19
1 3/16
0.89
1.31
1.25
381242
6J21
1 5/16
0.911
1.33
1.375
381243
6J26
1 5/8
0.958
1.45
1.75
381244
6J30
1 7/8
1.083
1.65
50mm
381245
6J40
2 1/2
1.333
2.05
65mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
