Thread Type: BSPP (British Standard Parallel Pipe) swivel female thread
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

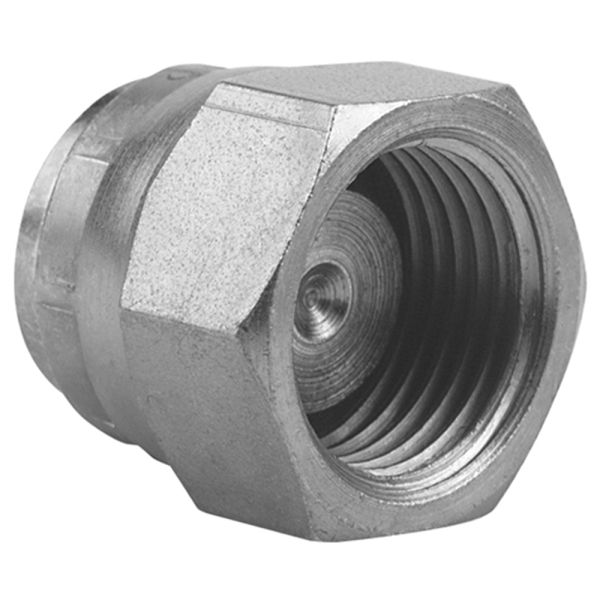

This BSPP swivel cap with a 60° coned sealing face is designed to blank off and securely seal BSPP male fittings in hydraulic systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a reliable, leak-free closure. The swivel design allows for easy installation and removal without twisting connected hoses, making it ideal for maintenance or temporary system isolation.
Thread Type: BSPP swivel female thread for flexible installation
Seal Type: 60° cone provides strong, pressure-tight metal-to-metal sealing
Leak-Proof Closure: Designed to blank off BSPP male fittings securely
Swivel Design: Allows easy fitting and removal without twisting hoses
Standard Compliance: Manufactured to BS EN 10277 for precise threading
Quality Manufacturing: ISO 9001-certified production ensures consistent reliability
Downloads
Burnett & Hillman Pressure Guide

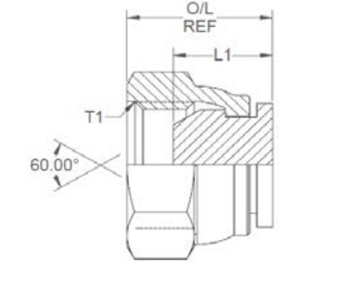

SKU
Product Code
T1 (")
L1 (")
O/L (")
A/F (mm)
380473
7BSBC02
1/8
0.45
0.645
14
380474
7BSBC04
1/4
0.51
0.725
19
380475
7BSBC06
3/8
0.612
0.86
22
380476
7BSBC08
1/2
0.628
0.93
27
380477
7BSBC10
5/8
0.6
1.015
30
380478
7BSBC12
3/4
0.625
1.015
32
380479
7BSBC16
1
0.673
1.13
41
380480
7BSBC20
1 1/4
0.76
1.195
50
380481
7BSBC24
1 1/2
0.9
1.402
55
380482
7BSBC32
2
1.012
1.66
70
