Thread Type: BSPP (British Standard Parallel Pipe)
Seal Type: Integrated 3869 seal for leak-free closure
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

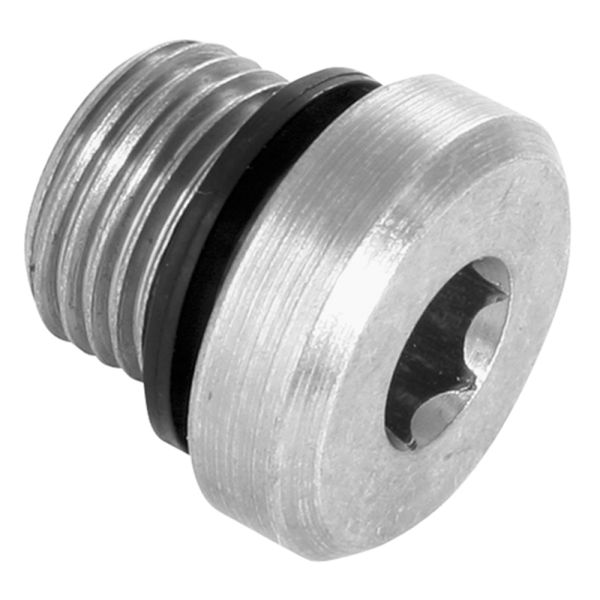

This BSPP socket-headed plug is equipped with an integrated 3869 seal to provide a secure and reliable closure of unused hydraulic ports. Designed for quick installation and removal using a hex key, it delivers a pressure-tight seal for hydraulic and pneumatic systems. Manufactured from high-quality mild steel by Burnett & Hillman to BS EN 10277 standards, it ensures long-lasting performance under demanding conditions.
Key Features & Benefits
Durable Construction: High-quality mild steel for robust, long-term use
Thread Type: BSPP male thread with socket head design
Integrated Seal: 3869 seal ensures a secure, leak-free closure
Easy Installation: Socket head allows quick fitting and removal with a hex key
Standard Compliance: Built to BS EN 10277 for precision and compatibility
Versatile Application: Suitable for hydraulic and pneumatic systems requiring port sealing
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

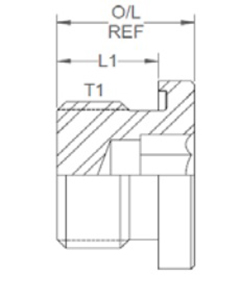

T1 (")
L1 (")
O/L (")

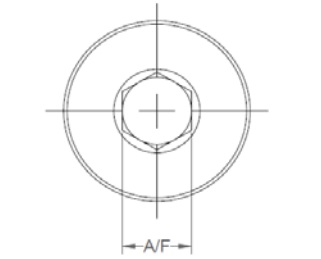

A/F (mm)
380328
3869-02-SPG
1/8
0.315
0.472
5
380329
3869-04-SPG
1/4
0.472
0.669
6
380330
3869-06-SPG
3/8
0.472
0.669
8
380331
3869-08-SPG
1/2
0.551
0.748
10
380332
3869-12-SPG
3/4
0.63
0.827
12
