Seal Types: NPT taper thread seal; JIC 37° cone metal-to-metal seal
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

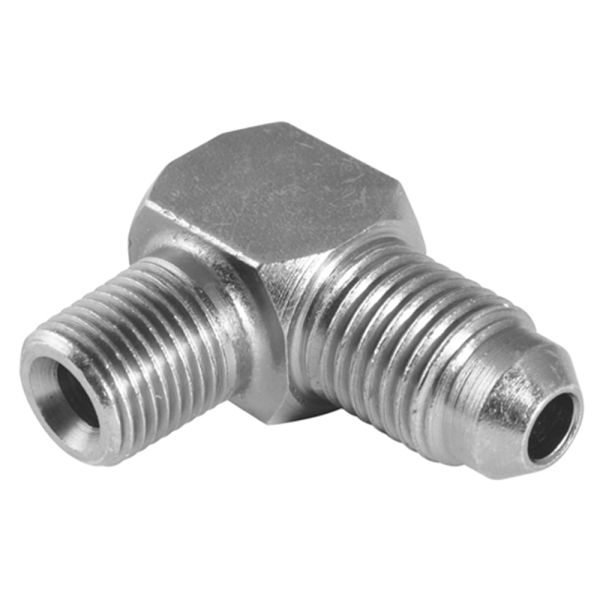

This compact 90° elbow connects a male NPT taper thread to a male JIC 37° cone, offering a reliable solution for joining American NPT pipe systems to JIC hydraulic fittings. The NPT end provides a secure, self-sealing taper thread, while the JIC 37° cone ensures a precise, leak-free metal-to-metal seal. Compact in design, it is ideal for installations where space is limited, while its steel construction to BS EN 10277 ensures strength, durability, and consistent performance in demanding hydraulic environments.
Key Features & Benefits
Compact 90° Design: Perfect for tight-space hydraulic installations
Cross-Standard Transition: Links NPT pipe threads to JIC fittings
High-Strength Steel: Long-lasting and pressure-resistant
Precision Machined: Built to BS EN 10277 for an accurate fit
ISO Certified Quality: Manufactured to ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
380969
04086
1/8
5/16
0.188
0.062
0.38
0.48
0.88
0.63
0.730
0.5
380970
04050
1/8
7/16
0.188
0.172
0.38
0.64
1.01
0.78
0.89
0.438
380971
04051
1/8
1/2
0.188
0.234
0.52
0.64
1.145
0.832
0.965
0.625
380972
04052
1/8
9/16
0.188
0.297
0.52
0.65
1.145
0.832
0.985
0.625
380973
04053
1/4
7/16
0.281
0.172
0.56
0.535
1.39
1.09
0.89
0.562
380974
04054
1/4
1/2
0.25
0.234
0.625
0.65
1.3
0.962
0.962
0.625
380975
04055
1/4
9/16
0.25
0.297
0.625
0.7
1.3
0.962
1.012
0.625
380976
04056
1/4
3/4
0.25
0.391
0.695
0.775
1.57
1.14
1.237
0.875
380977
04087
3/8
3/8
0.375
0.125
0.69
0.57
1.465
1.09
0.945
0.75
380978
04057
3/8
7/16
0.406
0.172
0.56
0.535
1.62
1.22
0.89
0.75
380979
04058
3/8
1/2
0.375
0.234
0.69
0.65
1.465
1.14
0.975
0.75
380980
04059
3/8
9/16
0.406
0.297
0.56
0.541
1.62
1.22
1.06
0.75
380981
04060
3/8
3/4
0.375
0.391
0.7
0.775
1.575
1.137
1.237
0.875
380982
04061
3/8
7/8
-
-
-
-
-
-
-
-
380983
04048
3/8
1 1/16
0.375
0.609
0.7
0.99
1.825
1.262
1.602
1.125
380984
04062
1/2
7/16
0.5
0.172
0.84
0.64
1.84
1.403
1.077
0.875
380985
04063
1/2
1/2
0.5
0.234
0.84
0.64
1.84
1.403
1.077
0.875
380986
04064
1/2
9/16
0.531
0.297
0.297
0.541
1.975
1.47
1.06
0.875
380987
04065
1/2
3/4
0.531
0.391
0.391
0.642
1.975
1.47
1.25
0.875
380988
04066
1/2
7/8
0.531
0.484
0.484
0.743
1.975
1.47
1.45
0.875
380989
04082
1/2
1 1/16
0.5
0.609
0.609
0.99
2.068
1.505
1.603
1.125
380990
04070
3/4
9/16
0.719
0.297
0.297
0.541
2.205
1.59
1.06
1.062
380991
04071
3/4
3/4
0.719
0.391
0.391
0.642
2.205
1.59
1.25
1.062
380992
04072
3/4
7/8
0.687
0.484
0.484
0.97
2.1
1.525
1.532
1.125
380993
04073
3/4
1 1/16
0.719
0.609
0.609
0.849
2.205
1.59
1.66
1.062
380994
04075
3/4
1 5/16
0.687
0.844
0.844
1.125
2.31
1.622
1.825
1.375
380995
04085
1
3/4
0.843
0.391
0.391
0.85
2.75
2
1.537
1.375
380996
04089
1
7/8
0.843
0.484
0.484
0.97
2.75
2
1.657
1.375
380997
04074
1
1 1/16
0.843
0.609
0.609
1.05
2.75
2
1.737
1.375
380998
04076
1
1 5/16
0.938
0.844
0.844
0.896
2.7
1.97
1.81
1.312
380999
04077
1
1 5/8
0.843
1.078
1.078
1.2
3.065
2.19
2.1
1.75
381000
04078
1 1/4
1 5/16
1.203
0.844
0.844
1.22
3.305
2.56
2.095
1.75
381001
04079
1 1/4
1 5/8
1.25
1.078
1.078
0.943
3.29
2.38
2.06
1.625
381002
04083
1 1/4
1 7/8
1.203
1.312
1.312
1.24
3.49
2.49
2.302
2
381003
04084
1 1/2
1 5/8
1.312
1.078
1.6
1.23
3.65
2.625
2.23
2
381004
04080
1 1/2
1 7/8
1.5
1.312
1
1.068
3.67
2.64
2.33
1.875
381005
04088
1 1/2
2 1/2
-
-
-
-
-
-
-
-
381006
04081
2
2 1/2
1.812
1.781
1.7
1.865
4.45
3.2
3.115
2.5
