Thread Types: Male NPT x Swivel Female JIC 37° cone
Seal Types: NPT taper thread seal; JIC 37° cone metal-to-metal seal
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

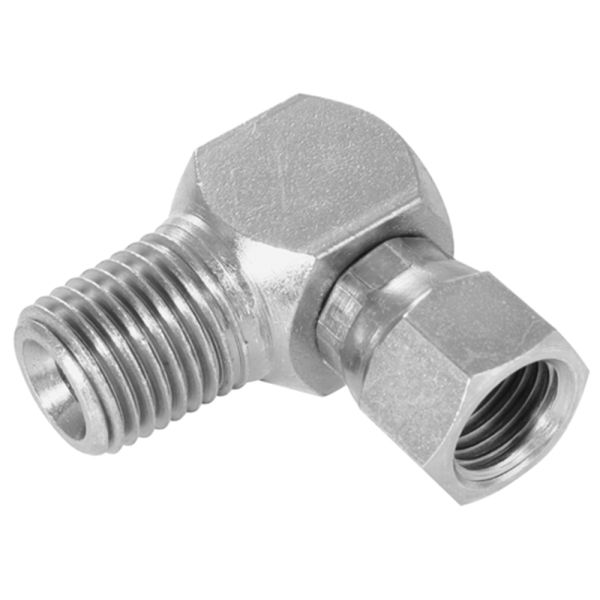

This compact 90° elbow connects a male NPT taper thread to a swivel female JIC 37° cone, providing a secure and versatile solution for linking NPT pipework to JIC hydraulic systems. The NPT male end delivers a strong, pressure-tight thread seal, while the swivel female JIC 37° cone ensures a precise, leak-free metal-to-metal connection. Its compact profile makes it ideal for confined hydraulic installations, and the steel construction to BS EN 10277 offers excellent strength and durability for demanding applications.
Key Features & Benefits
Compact 90° Elbow: Ideal for tight hydraulic layouts
NPT Male Thread: Strong, pressure-tight taper thread seal
Cross-Standard Adaptability: Connects NPT pipe to JIC fittings
Steel Construction: High strength and long service life
Precision Machined: Built to BS EN 10277 standards
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

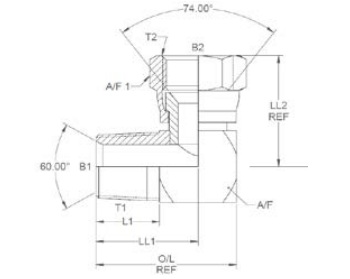

Male Thread T1 (")
Female Thread T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
381014
99001
3/8
9/16
0.375
0.297
0.69
1.465
1.077
1.17
0.75
0.687
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
