Configuration: Compact 90° elbow – male x fixed female
Thread Type: NPT (National Pipe Taper) male x NPT fixed female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 90° elbow combines an NPT male end with an NPT fixed female end, delivering a secure tapered-thread seal ideal for hydraulic and pneumatic applications. Its compact profile is designed for installations with limited space, while its steel construction ensures strength, reliability, and resistance to high pressures. Manufactured to BS EN 10277 standards, it provides precise fitment and long-lasting performance in demanding environments.
Key Features & Benefits
Compact 90° Elbow: Ideal for confined hydraulic layouts
Male x Fixed Female NPT: Strong and secure tapered-thread sealing
High-Strength Steel: Reliable under demanding pressures
Precision Machining: Complies with BS EN 10277 for exact fit
Leak-Resistant Design: Reduces risk of fluid loss under pressure
ISO Certified Quality: Produced under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

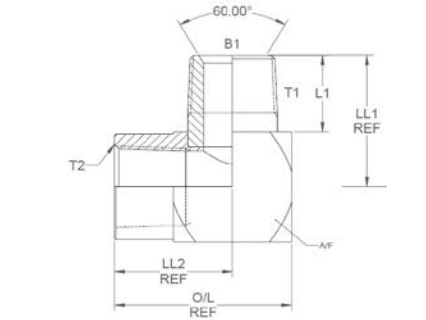

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
LL1 (")
LL2 (")
A/F
380060
XNMF0202
1/8
1/8
0.188
0.48
0.946
0.775
0.67
14mm
380061
XNMF0404
1/4
1/4
0.275
0.66
1.29
1.09
0.93
19mm
380062
XNMF0604
3/8
1/4
0.375
0.72
1.355
1.095
0.967
0.75"
380063
XNMF0606
3/8
3/8
0.4
0.66
1.51
1.24
1.04
22mm
380064
XNMF0806
1/2
3/8
0.5
0.943
1.625
1.443
1.125
1"
380065
XNMF0808
1/2
1/2
0.535
0.9
1.84
1.49
1.2
27mm
380066
XNMF1212
3/4
3/4
0.687
0.95
2.1
1.637
1.4
1.375"
380067
XNMF1616
1
1
0.844
1.315
2.625
2.19
1.75
1.75"
380068
XNMF2020
1 1/4
1 1/4
1.203
1.49
3.087
2.49
2.037
2"
380069
XNMF2424
1 1/2
1 1/2
1.312
1.64
3.55
2.89
2.275
2.5"
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
