Thread Type: JIC swivel female x JIC swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

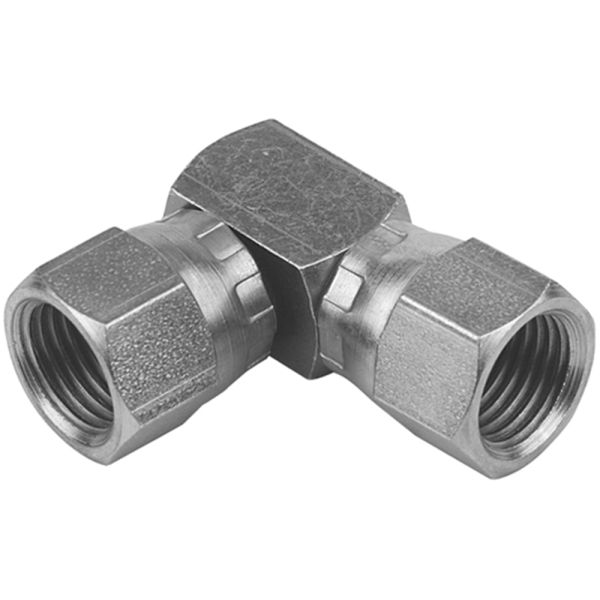

This compact 90° elbow features JIC swivel female threads on both ends with a 37° cone for secure, leak-free metal-to-metal sealing. Designed for space-restricted installations, the swivel female connection makes assembly and alignment easier without twisting hoses or pipes. Manufactured from high-strength steel to BS EN 10277 standards, it offers excellent durability, precision fit, and dependable performance under high-pressure conditions.
Key Features & Benefits
Compact 90° Elbow: Ideal for installations with limited space
Precision Machined: Manufactured to BS EN 10277 for accurate fitment
ISO Certified Quality: Produced under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

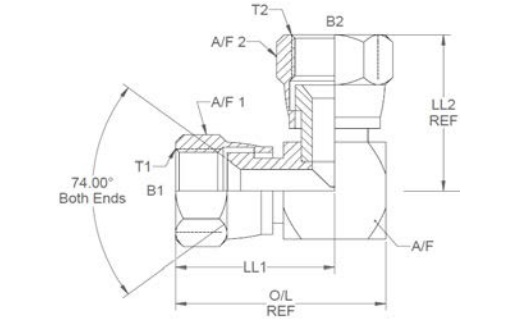

T1 & T2 (")
B1 & B2 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
A/F1 & A/F2 (")
381007
XJF0707
7/16
0.176
1.217
0.967
0.935
0.5
0.562
381008
XJF0909
9/16
0.297
1.431
1.091
1.088
0.625
0.687
381009
XJF1212
3/4
0.39
1.815
1.382
1.406
0.875
0.875
381010
XJF1414
7/8
0.5
2.08
1.579
1.565
0.875
1
381011
XJF1717
1 1/16
0.593
2.39
1.763
1.738
1.125
1.25
381012
XJF1919
1 3/16
0.75
2.612
1.96
1.82
1.375
1.375
381013
XJF2121
1 5/16
0.812
2.895
2.076
1.919
1.375
1.5
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
