Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

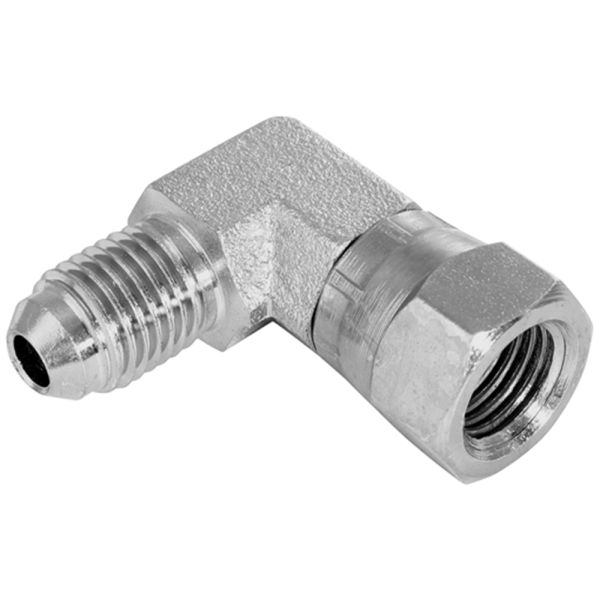

This compact forged 90° elbow features a JIC male end and a JIC swivel female end, both with a 37° cone for precise metal-to-metal sealing. The forged construction delivers enhanced strength and durability for demanding hydraulic environments, while the compact design allows installation in tight spaces without compromising performance. The swivel female connection provides easier hose or pipe alignment, reducing stress on the assembly. Manufactured to BS EN 10277 standards from high-quality steel, it ensures reliable, long-lasting service.
Key Features & Benefits
Compact Forged 90° Elbow: Extra strength in a space-saving design
JIC 37° Cone: Proven leak-free metal-to-metal seal
Male x Swivel Female: Simplifies alignment and installation
Forged Steel Construction: Withstands high pressure and mechanical stress
Precision Machined: Manufactured to BS EN 10277 for accurate fit
ISO Certified Quality: Produced under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

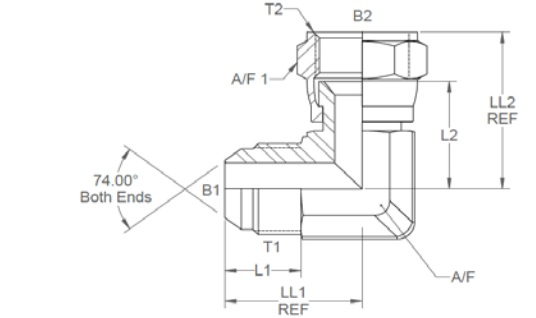

SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
380962
05050FD
7/16
0.172
0.535
0.657
0.89
1
0.438
0.562
380963
05051FD
1/2
0.234
0.535
0.685
0.685
1.06
0.562
0.625
380964
05052FD
9/16
0.297
0.541
0.878
1.06
1.25
0.562
0.687
380965
05053FD
3/4
0.391
0.642
0.96
1.25
1.38
0.75
0.875
380966
05054FD
7/8
0.484
0.743
1.118
1.45
1.62
0.875
1
380967
05055FD
1 1/16
0.609
0.849
1.185
1.66
1.75
1.062
1.25
380968
05056FD
1 3/16
0.719
0.875
1.23
1.8
1.78
1.062
1.375
