Seal Types: BSPT taper thread seal; JIC 37° cone metal-to-metal seal
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

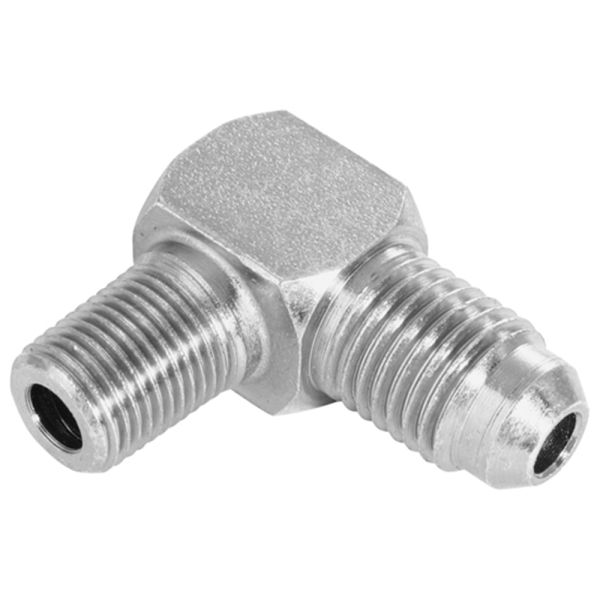

This compact 90° elbow connects a male BSPT taper thread to a male JIC 37° cone, making it ideal for linking British taper-thread systems to American JIC hydraulic setups. The BSPT end provides a secure, self-sealing taper thread connection, while the JIC 37° cone offers a reliable metal-to-metal seal. Designed for high-pressure applications where installation space is restricted, this fitting is manufactured from durable steel to BS EN 10277 standards for long-lasting performance in demanding environments.
Key Features & Benefits
Compact 90° Elbow: Space-saving design for tight hydraulic layouts
Cross-Standard Connectivity: Allows transition from BSPT to JIC fittings
Robust Steel Construction: Withstands high operating pressures
Precision Manufacture: Built to BS EN 10277 for consistent accuracy
ISO Certified Quality: Produced to ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

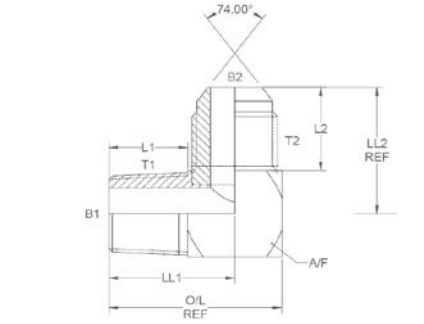

T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
381069
08550
1/8
7/16
0.187
0.172
0.52
0.64
1.02
0.77
0.965
0.5
381070
08551
1/8
1/2
0.187
0.234
0.52
0.64
1.16
0.832
0.965
0.625
381071
08552
1/8
9/16
0.187
0.297
0.52
0.65
1.16
0.832
0.985
0.625
381072
08553
1/4
7/16
0.25
0.172
0.6
0.64
1.275
0.937
0.952
0.625
381073
08554
1/4
1/2
0.25
0.234
0.675
0.64
1.3
0.987
0.965
0.625
381074
08555
1/4
9/16
0.25
0.297
0.675
0.65
1.3
0.987
0.985
0.625
381075
08556
1/4
3/4
0.25
0.391
0.675
0.775
1.55
1.125
1.238
0.625
381076
08557
3/8
7/16
0.375
0.172
0.69
0.64
1.465
1.077
1.015
0.75
381077
08558
3/8
1/2
0.375
0.234
0.69
0.67
1.465
1.077
1.045
0.75
381078
08559
3/8
9/16
0.375
0.297
0.69
0.7
1.465
1.077
1.075
0.75
381079
08560
3/8
3/4
0.375
0.391
0.7
0.775
1.575
1.137
1.237
0.875
381080
08561
3/8
7/8
0.375
0.484
0.7
0.875
1.7
1.2
1.4
1
381081
08562
1/2
7/16
0.5
0.172
0.85
0.64
1.85
1.413
1.077
0.875
381082
08564
1/2
9/16
0.5
0.297
0.85
0.7
1.85
1.413
1.137
0.875
381083
08565
1/2
3/4
0.5
0.391
0.85
0.85
1.85
1.413
1.287
0.875
381084
08566
1/2
7/8
0.5
0.484
0.94
0.875
1.94
1.44
1.4
1
381085
08567
1/2
1 1/16
0.5
0.484
0.94
0.99
2.065
1.502
1.602
1.125
381086
08584
1/2
1 5/16
-
-
-
-
-
-
-
-
381087
08568
3/4
9/16
0.687
0.297
0.97
0.7
2.21
1.532
1.262
1.125
381088
08569
3/4
3/4
0.687
0.391
0.97
0.85
2.21
1.532
1.412
1.125
381089
08570
3/4
7/8
0.687
0.484
0.97
0.97
2.21
1.532
1.532
1.125
381090
08571
3/4
1 1/16
0.687
0.609
0.97
1.05
2.21
1.532
1.612
1.125
381091
08572
3/4
1 5/16
0.687
0.844
0.945
1.125
2.32
1.632
1.825
1.375
381092
08573
1
3/4
0.875
0.391
1.25
0.85
2.75
2.063
1.537
1.375
381093
08585
1
7/8
0.875
0.484
1.25
0.95
2.75
2.063
1.637
1.375
381094
08574
1
1 1/16
0.875
0.609
1.25
1.05
2.75
2.063
1.737
1.375
381095
08575
1
1 5/16
0.875
0.844
1.25
1.22
2.75
2.063
1.907
1.375
381096
08576
1
1 5/8
0.875
1.078
1.3
1.2
3.05
2.175
2.1
1.75
381097
08577
1 1/4
1 5/16
1.203
0.844
1.5
1.22
3.3
2.425
2.095
1.75
381098
08578
1 1/4
1 5/8
1.203
1.078
1.5
1.23
3.3
2.425
2.105
1.75
381099
08579
1 1/4
1 7/8
1.203
1.312
1.63
1.24
3.63
2.63
2.302
2
381100
08580
1 1/2
1 5/8
1.312
1.078
1.6
1.23
3.65
2.625
2.23
2
381101
08581
1 1/2
1 7/8
1.312
1.312
1.6
1.33
3.65
2.625
2.23
2
381102
08582
2
2 1/2
1.812
1.781
1.7
1.865
4.45
3.2
3.115
2.5
