Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 90° elbow combines a male BSPT thread with a swivel female BSPP 60° cone connection, offering a versatile solution for hydraulic systems. The BSPP 60° cone end provides a precise metal-to-metal seal, while the swivel design allows for easier alignment and reduced installation stress. The BSPT taper thread ensures a secure, pressure-tight connection. Compact in size yet forged from high-quality steel, this fitting is precision-engineered to BS EN 10277 standards for long-lasting reliability in high-pressure applications.
Key Features & Benefits
Compact 90° Elbow: Designed for use in restricted spaces
BSPP 60° Cone Seal: Ensures leak-free performance
Swivel Female Connection: Simplifies installation and reduces hose twist
BSPT Taper Thread: Provides a strong, self-sealing fit
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

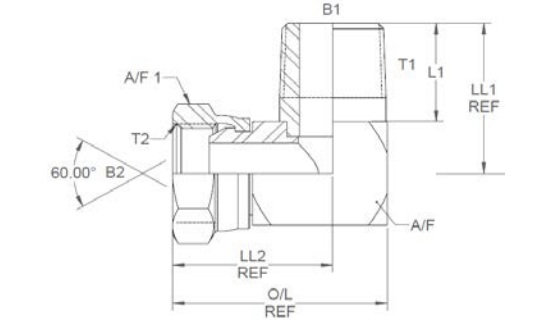

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
A/F1 (mm)
380036
09410
1/8
1/8
0.125
0.188
0.52
0.52
0.915
0.915
0.5
14
380037
09405
1/4
1/4
0.172
0.25
0.68
1.38
0.988
0.993
0.625
19
380038
09406
3/8
3/8
0.271
0.375
0.7
1.715
1.24
1.075
0.75
22
380039
09407
1/2
1/2
0.375
0.5
0.95
1.88
1.35
1.4
0.875
27
380040
09411
3/4
1/2
0.687
0.375
0.97
1.97
1.59
1.42
1.125
27
380041
09408
3/4
3/4
0.687
0.6
0.97
1.97
1.59
1.505
1.125
32
380042
09409
1
1
0.843
0.797
1.25
2.4
2.023
1.716
1.375
41
380043
09412
1 1/2
1 1/2
1.312
1.201
1.6
3.33
2.725
2.35
2
55
