BH BSPP Female Compact 90° Elbow

Loading...
Useful Information

Technical Specification

  • Sizes Available: 1/4" - 1 1/4"
  • Material: Steel
  • Thread Type: BSPP (British Standard Pipe Parallel) fixed female
  • Standard Compliance: Manufactured to BS EN 10277
  • Temperature Range: -40°C to +120°C without pressure reduction
  • Pressure Ratings:
  • Proof Pressure: 2× working pressure
  • Burst Pressure: 4× working pressure
  • Torque Guidance: For lightly oiled steel threads
  • Quality Assurance: ISO 9001-certified manufacturing

Description

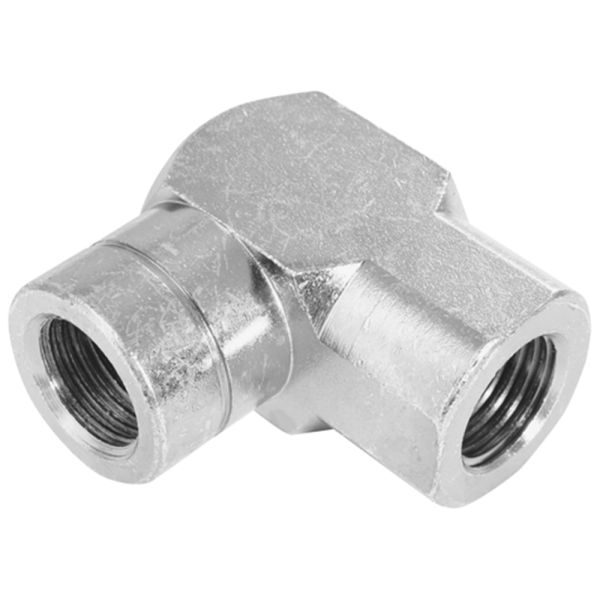

This compact 90° elbow features BSPP fixed female threads on both ends, offering a strong and secure connection for hydraulic and fluid transfer systems. Its space-saving design makes it ideal for installations with limited clearance, while the robust steel construction ensures durability and resistance to high pressures. Manufactured to BS EN 10277 standards, it provides precise fitment and reliable performance in demanding applications.

Key Features & Benefits

  • Compact 90° Design: Ideal for space-restricted hydraulic layouts
  • Dual BSPP Female Threads: Compatible with a range of male fittings
  • Durable Steel Construction: Long-lasting and pressure-resistant
  • Precision Machined: Complies with BS EN 10277 for an exact fit
  • Versatile Use: Suitable for hydraulic, pneumatic, and industrial systems
  • Reliable Performance: Maintains strength under high-pressure conditions
  • ISO Certified Quality: Manufactured under ISO 9001 standards

Downloads

Burnett & Hillman Pressure Guide

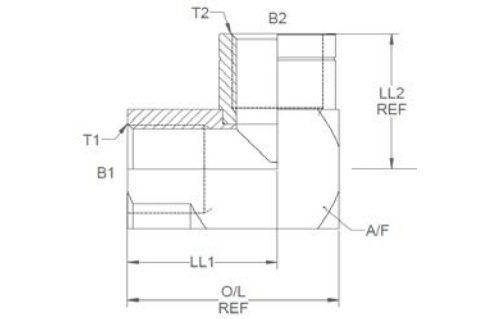

SKU Product Code T1 (") T2 (") B1 & B2 (") O/L (") LL1 & LL2 (") A/F (mm)
379997 15026 1/4 1/4  0.465 1.3 0.866 19
379998 15027 3/8 3/8 0.6 1.515 1.004 22
379999 15028 1/2 1/2 0.75 1.81 1.22 27
380000 15030 3/4 3/4 0.964 2.09 1.339 33
380001 15031 1 1 1.21 2.5 1.595 41
380002 15032 1 1/4 1 1/4 1.555 3.7 2.575 2.25"
