Thread Types: Male BSPP 60° cone x Male JIC 37° cone
Seal Types: BSPP 60° cone metal-to-metal seal; JIC 37° cone metal-to-metal seal
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 90° elbow connects a male BSPP 60° cone to a male JIC 37° cone, allowing seamless integration between British and American hydraulic systems. The BSPP and JIC ends both feature precision-engineered metal-to-metal cone seals for leak-free performance. Designed for use where space is limited, its compact size aids installation without compromising strength. Manufactured from high-grade steel to BS EN 10277 standards, it delivers reliable performance in high-pressure hydraulic applications.
Key Features & Benefits
Compact 90° Elbow: Designed for installations with restricted space
Dual Cone Seals: BSPP 60° cone and JIC 37° cone for dependable sealing
Cross-Standard Connection: Links British BSPP to American JIC fittings
Strong Steel Build: Suitable for high-pressure, heavy-duty use
Precision Engineering: BS EN 10277 compliance ensures an accurate fit
ISO Certified Quality: Produced under ISO 9001 manufacturing standards
Downloads
Burnett & Hillman Pressure Guide
SKU

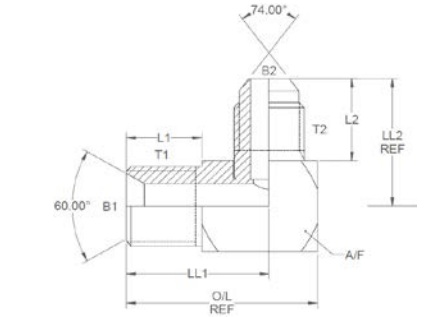

Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
381056
XMB04J07
1/4
7/16
0.185
0.172
0.565
0.64
1.335
0.993
0.952
0.625
381057
XMB04J08
1/4
1/2
0.25
0.234
0.565
0.64
1.335
0.993
0.952
0.625
381058
XMB04J09
1/4
9/16
0.185
0.297
0.565
0.7
1.335
0.95
1.012
0.625
381059
XMB06J09
3/8
9/16
0.375
0.297
0.6
0.7
1.52
1.08
1.075
0.75
381060
XMB06J12
3/8
3/4
0.375
0.391
0.85
0.775
1.715
1.287
1.237
0.875
381061
XMB08J12
1/2
3/4
0.437
0.391
0.74
0.85
1.84
1.329
1.287
0.875
381062
XMB08J14
1/2
7/8
0.5
0.484
0.885
0.875
1.885
1.385
1.4
1
381063
XMB12J14
3/4
7/8
0.625
0.484
0.82
0.98
2.06
1.478
1.542
1.125
381064
XMB12J17
3/4
1 1/16
0.625
0.609
0.94
0.99
2.065
1.502
1.602
1.125
381065
XMB16J17
1
1 1/16
0.812
0.609
1.05
1.05
2.475
1.762
1.737
1.375
381066
XMB16J21
1
1 5/16
0.812
0.844
1.05
1.22
2.475
1.762
1.907
1.375
381067
XMB20J26
1 1/4
1 5/8
1.125
1.078
1.2
1.23
3.2
2.2
2.105
1.75
381068
XMB24J30
1 1/2
1 7/8
1.312
1.312
1.4
1.33
3.45
2.425
2.33
2
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
