Thread Type: BSPP (British Standard Pipe Parallel) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

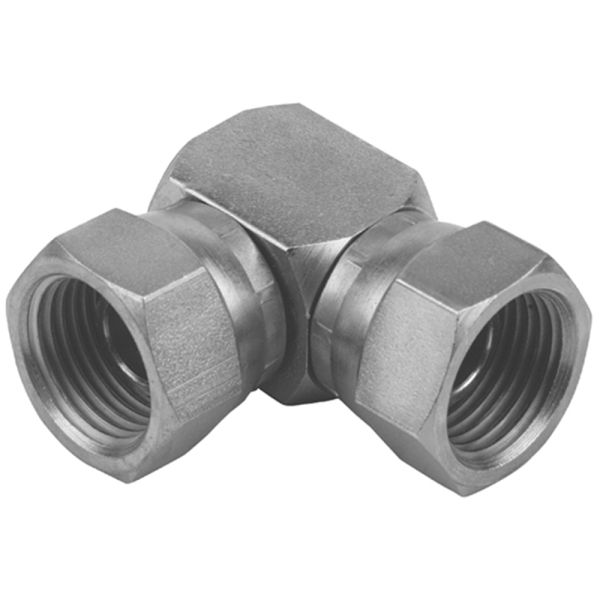

This compact 90° elbow features BSPP swivel female threads with a 60° cone, providing a secure metal-to-metal seal for high-pressure hydraulic systems. The swivel design allows easy installation and alignment without twisting hoses or pipes, while the compact size is ideal for tight-space applications. Manufactured from premium-grade steel to BS EN 10277 standards, this fitting offers long-lasting durability and precision in hydraulic and fluid transfer systems.
Key Features & Benefits
Compact 90° Elbow: Perfect for confined installation spaces
Swivel Female Design: Simplifies alignment and installation
60° Cone Seal: Provides a reliable, leak-free joint
High-Strength Steel: Ensures long service life in demanding environments
Precision Engineering: Meets BS EN 10277 for exact fit and sealing
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

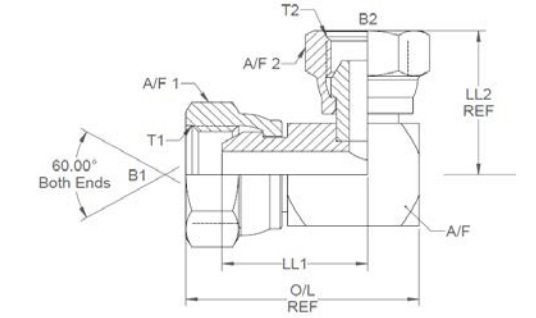

T1 (")
T2 (")
B1 (")
B2 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
A/F1 (mm)
A/F2 (mm)
380003
XBF0202
1/8
1/8
0.125
0.125
1.195
0.87
0.825
0.5
14
14
380004
XBF0204
1/8
1/4
0.172
0.125
1.37
1.025
0.888
0.625
19
14
380005
XBF0404
1/4
1/4
0.172
0.172
1.37
1.025
0.978
0.625
19
19
380006
XBF0406
1/4
3/8
0.271
0.172
1.71
1.26
1.04
0.75
22
19
380007
XBF0408
1/4
1/2
0.375
0.172
1.88
1.45
1.103
0.875
27
19
380008
XBF0606
3/8
3/8
0.271
0.271
1.71
1.3
1.158
0.75
22
22
380009
XBF0608
3/8
1/2
0.39
0.296
1.88
1.464
1.221
0.875
27
22
380010
XBF0808
1/2
1/2
0.375
0.375
1.88
1.35
1.283
0.875
27
27
380011
XBF1010
5/8
5/8
0.5
0.5
2.15
1.582
1.445
1
30
30
380012
XBF1212
3/4
3/4
0.6
0.6
2.14
1.515
1.478
1.125
32
32
380013
XBF1216
3/4
1
0.797
0.6
2.68
2.085
1.603
1.375
41
32
380014
XBF1616
1
1
0.797
0.797
2.68
1.969
1.714
1.375
41
41
380015
XBF2020
1 1/4
1 1/4
1.014
1.014
3.345
2.395
1.97
1.75
50
50
380016
XBF2424
1 1/2
1 1/2
1.201
1.201
3.827
2.717
2.342
2
55
55
380017
XBF3232
2
2
1.703
1.703
4.644
3.269
2.342
2.5
70
70
