Thread Types: Male BSPP 60° cone x Swivel female JIC 37° cone
Seal Types: BSPP 60° cone metal-to-metal seal; JIC 37° cone metal-to-metal seal
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 90° elbow connects a male BSPP 60° cone to a swivel female JIC 37° cone, making it ideal for joining British and American hydraulic systems. The swivel design on the JIC end simplifies installation by reducing hose twist and allowing easy alignment, while the metal-to-metal cone seals provide reliable, leak-free performance. Precision-manufactured from high-strength steel to BS EN 10277, this fitting is designed for use in high-pressure hydraulic systems where space is limited.
Key Features & Benefits
Compact 90° Elbow: Perfect for tight installation spaces
Swivel Female JIC: Allows easier hose alignment and reduces stress
BSPP 60° Cone Seal: Reliable metal-to-metal sealing for leak prevention
Cross-Standard Connectivity: Links BSPP fittings to JIC systems
Precision Engineering: BS EN 10277 compliance for exact fit
ISO Certified Quality: Produced to ISO 9001 manufacturing standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

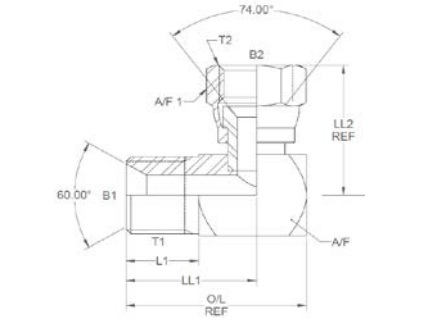

Male Thread T1 (")
Female Thread T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
381049
XBMJF0409
1/4
9/16
0.185
0.297
0.565
1.375
0.993
1.05
0.625
0.687
381050
XBMJF0609
3/8
9/16
0.312
0.297
0.6
1.52
1.085
1.14
0.75
0.75
381051
XBMJF0612
3/8
3/4
0.375
0.39
0.6
1.52
1.085
1.34
0.75
0.875
381052
XBMJF0812
1/2
3/4
0.437
0.391
0.74
1.84
1.329
1.37
0.875
0.875
381053
XBMJF0814
1/2
7/8
0.437
0.5
0.74
1.84
1.329
1.5
0.875
1
381054
XBMJF1014
5/8
7/8
0.562
0.5
0.835
1.975
1.45
1.55
1
1
381055
XBMJF1217
3/4
1 1/16
0.625
0.593
0.82
2.06
1.44
1.738
1.125
1.25
