Configuration: Compact 90° elbow – male x swivel female
Seal Type: Male end for bonded seal, swivel female with 60° cone
Thread Type: BSPP (British Standard Pipe Parallel) male for bonded seal x BSPP swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 90° elbow combines a BSPP male end designed for use with a bonded seal and a BSPP swivel female end with a 60° cone for secure metal-to-metal sealing. The bonded seal connection ensures leak-free performance under high pressure, while the swivel female design allows easier hose alignment without twisting. The compact form is ideal for installations with limited space, and its precision-engineered steel construction ensures durability and reliability in demanding hydraulic environments.
Key Features & Benefits
Compact 90° Elbow: Space-saving design for tight installations
Male Bonded Seal Connection: High-pressure sealing capability
High-Strength Steel: Durable and pressure-resistant
Precision Machining: Complies with BS EN 10277 for accurate fit
ISO Certified Quality: Produced under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

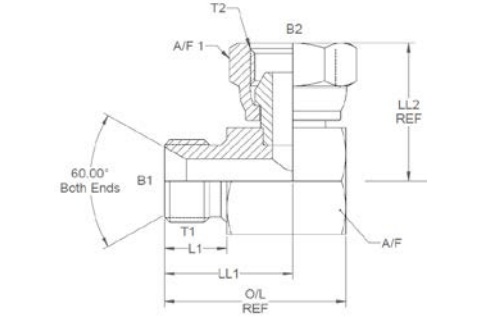

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
LL1 (")
LL2 (")
A/F (mm)
A/F1 (mm)
379967
XBMBF0202
1/8
1/8
0.137
0.125
0.44
1.11
0.81
0.836
14
14
379968
XBMBF0404
1/4
1/4
0.185
0.172
0.45
1.27
0.93
1.039
19
19
379969
XBMBF0604
3/8
3/8
0.312
0.271
0.52
1.58
1.164
1.221
22
22
379970
XBMBF0606
3/8
1/4
0.375
0.172
0.52
1.58
1.164
1.07
22
19
379971
XBMBF0806
1/2
3/8
0.437
0.271
0.6
1.75
1.239
1.32
27
22
379972
XBMBF0808
1/2
1/2
0.437
0.375
0.6
1.75
1.239
1.376
27
27
379973
XBMBF0812
1/2
3/4
0.437
0.562
0.6
2.07
1.46
1.57
32
32
379974
XBMBF1010
5/8
5/8
0.562
0.437
0.7
1.95
1.412
1.536
30
30
379975
XBMBF1212
3/4
3/4
0.625
0.562
0.75
2.22
1.585
1.57
32
32
379976
XBMBF1616
1
1
0.875
0.75
0.8
2.66
1.86
1.847
41
41
379977
XBMBF2020
1 1/4
1 1/4
1.125
0.875
0.8
3.085
2.135
2.079
50
50
379978
XBMBF2424
1 1/2
1 1/2
1.312
0.98
0.85
3.45
2.342
2.385
55
55
379979
XBMBF3232
2
2
1.75
1.3
1
3.75
2.375
2.907
70
70
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
