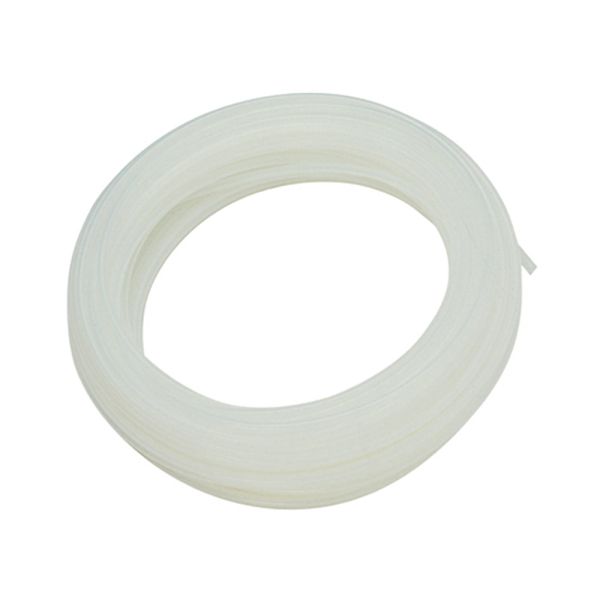

Air-Pro Nylon Tube Metric
Useful Information
Technical Specification
- Material: PA12 Semi-Rigid (Polyamide 12), food grade
- External diameter range: 4mm to 15mm
- Coil length: 30 metres
- Temperature range: -40°C to +110°C continuous, +140°C intermittent
- Maximum working pressure: up to 66 bar (967 psi)
- Conformance: FDA and EU compliant for direct contact with non-alcoholic foodstuffs
- Shore-D Hardness: 70
- Flame Rating: UL 94 HB
Description
This high-quality semi-rigid tubing is manufactured from PA12, a lightweight, low-absorption polyamide known for its strength and chemical resistance. Designed for precision performance, it maintains flexibility and mechanical integrity even in cold environments. Delivered in metric 30 metre coils, it is ideal for pneumatic systems, lubrication, automotive applications, and food-grade installations where durability and hygiene are essential.
Key Features & Benefits
- Food-safe and tasteless material for hygiene-critical environments
- Low moisture absorption ensures dimensional stability
- Exceptional resistance to abrasion, UV, and most chemicals
- Operates effectively across a wide temperature range, including intermittent high-heat exposure
- Suitable for use in pneumatic circuits, beverage lines, fuel systems, and more
- Colour-coded in white for easy system identification
- Complies with FDA and EU food contact standards
- Available in multiple metric sizes to suit diverse system requirements
| Product Code | ID (mm) | OD (mm) | Max. Working Pressure (psi) |
| 377801 | 2.5 | 4 | 870 |
| 377802 | 3 | 5 | 967 |
| 377803 | 4 | 6 | 725 |
| 377804 | 6 | 8 | 843 |
| 377805 | 8 | 10 | 363 |
| 377806 | 10 | 12 | 290 |
| 377807 | 12 | 15 | 363 |
