8 bar Metal Push-In Male Hex Stud

Loading...

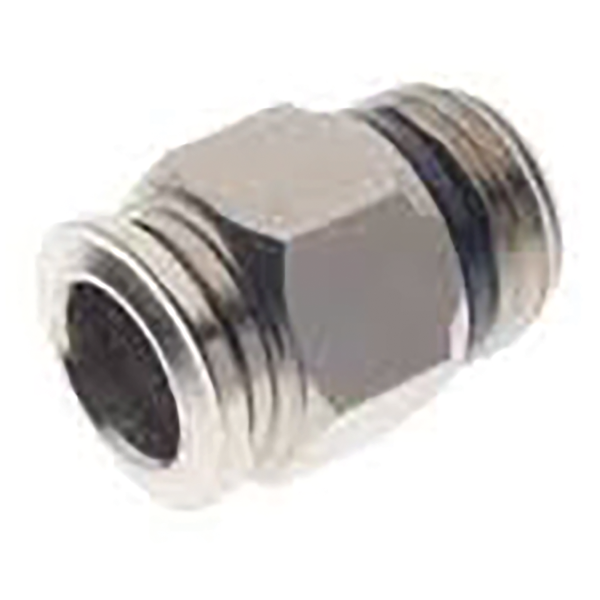

main product photo
More Info
Useful Information

Technical Specification

  • Material (Body & Collet): Nickel-plated brass
  • O-Ring Material: Nitrile
  • Thread Types: BSPT, BSPP, and Metric
  • Tube Types Supported: PU and Nylon
  • Fluid Compatibility: Compressed air
  • Temperature Range: -10°C to +60°C
  • Maximum Working Pressure: 8 bar

Description

The 8 Bar Metal Push-In Male Hex Stud is a versatile and durable pneumatic fitting designed for seamless tube connections in compressed air systems. Featuring a hexagonal stud design, it allows for easy installation and removal with enhanced grip and control. This fitting is ideal for industrial and commercial pneumatic applications requiring repeated connections without tools.

Key Features

  • One-Handed Connection: Effortlessly connect and disconnect tubes without the need for tools, saving time and increasing convenience.
  • Robust Material: Made from nickel-plated brass, providing excellent corrosion resistance and a long operational life.
  • Hex Design: Features a hexagonal stud for improved handling and secure installation.
  • Temperature Versatility: Functions reliably in temperatures ranging from -10°C to +60°C.
  • Pressure-Resistant: Operates effectively under pressures of up to 8 bar, suitable for demanding pneumatic systems.
  • Universal Compatibility: Supports BSPT, BSPP, and metric threads for diverse applications.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
487945 Metal Push-In Male Hex Stud 4mm x 1/8" £5.25 50%
You Pay:  £2.62
487946 Metal Push-In Male Hex Stud 4mm x 1/4" £6.19 50%
You Pay:  £3.09
487947 Metal Push-In Male Hex Stud 6mm x 1/8" £6.75 50%
You Pay:  £3.38
487948 Metal Push-In Male Hex Stud 6mm x 1/4" £6.75 50%
You Pay:  £3.38
487949 Metal Push-In Male Hex Stud 6mm x 3/8" £8.34 50%
You Pay:  £4.17
487950 Metal Push-In Male Hex Stud 6mm x 1/2" £9.51 50%
You Pay:  £4.75
487951 Metal Push-In Male Hex Stud 8mm x 1/8" £6.45 50%
You Pay:  £3.23
487952 Metal Push-In Male Hex Stud 8mm x 1/4" £6.75 50%
You Pay:  £3.38
487953 Metal Push-In Male Hex Stud 8mm x 3/8" £7.28 50%
You Pay:  £3.64
487954 Metal Push-In Male Hex Stud 8mm x 1/2" £9.32 50%
You Pay:  £4.66
487955 Metal Push-In Male Hex Stud 10mm x 1/4" £9.58 50%
You Pay:  £4.79
487956 Metal Push-In Male Hex Stud 10mm x 3/8" £9.58 50%
You Pay:  £4.79
487957 Metal Push-In Male Hex Stud 10mm x 1/2" £10.79 50%
You Pay:  £5.40
487958 Metal Push-In Male Hex Stud 12mm x 1/4" £11.32 50%
You Pay:  £5.66
487959 Metal Push-In Male Hex Stud 12mm x 3/8" £11.25 50%
You Pay:  £5.62
487961 Metal Push-In Male Hex Stud 14mm x 3/8" £18.08 50%
You Pay:  £9.04
487962 Metal Push-In Male Hex Stud 14mm x 1/2" £18.79 50%
You Pay:  £9.40
