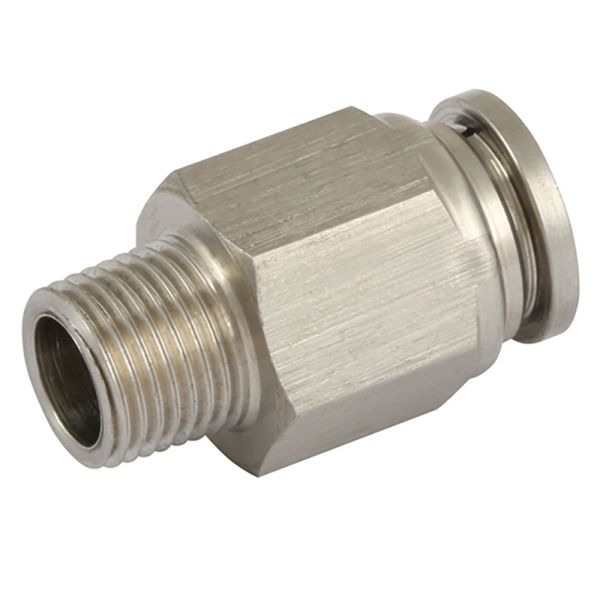

Kelm Stainless Steel Stud Coupling M
Useful Information
Technical Specification
- Material: 316 stainless steel body and collet
- Tube Compatibility: PU and nylon
- Media: Compressed air, steam, water, vacuum and other compatible liquids
- Connection Type: Tube x BSPT male thread
- Maximum Working Pressure: 10 bar
- Operating Temperature: -20°C to +200°C
Description
This one touch fitting provides fast and reliable connection for pneumatic and fluid handling applications. Its robust 316 stainless steel construction offers excellent corrosion resistance, making it suitable for demanding or aggressive environments. The push in design allows quick installation and removal with minimal effort, ensuring efficient maintenance and system adjustments.
Key Features & Benefits
- Instant connection: Push in mechanism enables rapid tube installation with no tools required
- Easy disconnection: Light pressure on the collet ring releases the tube quickly
- Corrosion resistant construction: 316 stainless steel body and collet ensure long service life in challenging environments
- Wide media compatibility: Suitable for compressed air, steam, water and other compatible liquids
- High temperature capability: Performs reliably from -20°C to +200°C
- Secure threaded connection: BSPT male thread provides a tight and dependable seal
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
