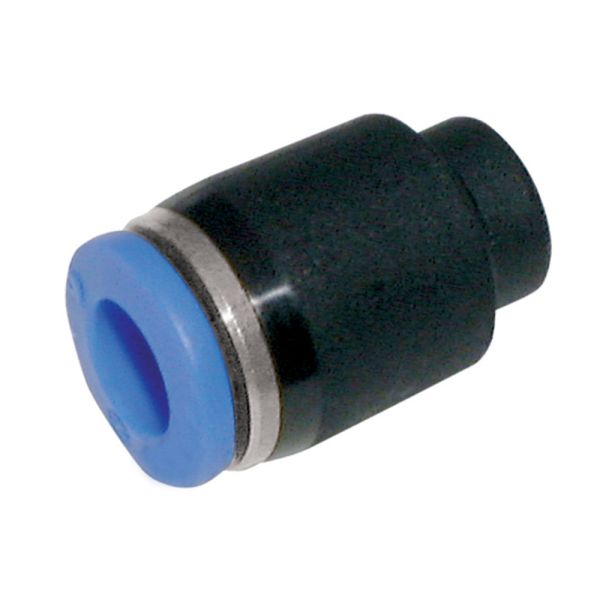

Kelm Tube Plug
Useful Information
Technical Specification
- Material: PBT Plastic Body with Nickel-Plated Brass Components
- Connection Type: Plug x Tube
- Media: Air and Vacuum Only
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Negative Pressure: -750mm Hg (10 Torr)
- Working Pressure Range: 0–990 kPa
Description
This tube plug provides a quick and reliable method for sealing unused or open-ended pneumatic lines. Ideal for isolating sections of a system during maintenance or reconfiguration, the compact design uses a one-touch push-in mechanism for effortless installation and secure sealing. Built with a durable PBT body and nickel-plated brass internals, it ensures lasting performance in air and vacuum environments up to 10 bar.
Key Features & Benefits
- Secure Sealing: Effectively blocks off pneumatic lines to maintain pressure and prevent contamination
- One-Touch Fitment: Quick push-in installation and removal without the need for tools
- Durable Materials: Robust PBT body with corrosion-resistant nickel-plated brass components
- Vacuum & Pressure Rated: Designed for systems up to 10 bar and down to -750mm Hg
- Compact Solution: Ideal for isolating unused ports in confined or complex installations
- Temperature Resilience: Performs in environments from 0°C to +60°C
| Product Code | D (mm) | P (mm) | B (mm) | L (mm) |
| 366510 | 4 | 10.5 | 15.3 | 18.7 |
| 366511 | 6 | 12.5 | 16.4 | 20 |
| 366512 | 8 | 14.5 | 18.3 | 21.4 |
| 366513 | 10 | 17.5 | 20.2 | 22.9 |
| 366514 | 12 | 20.5 | 22.9 | 25.1 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
