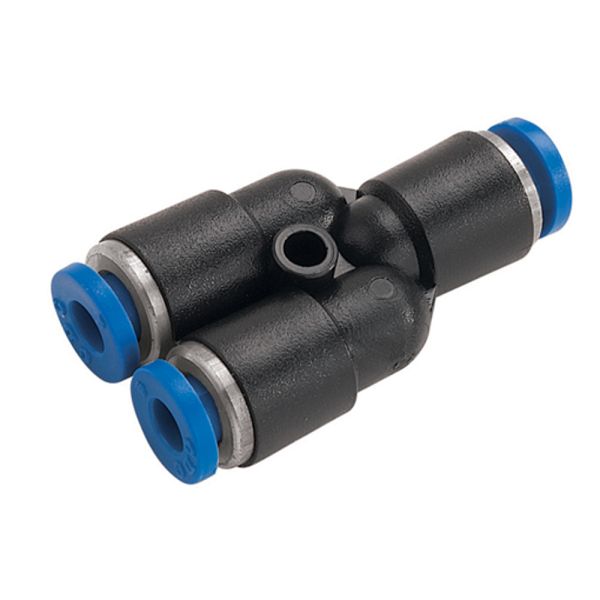

Kelm Push-In Y Splitter
Useful Information
Technical Specification
- Material: PBT Plastic Body with Nickel-Plated Brass Components
- Connection Type: Tube x Tube (Y-Type Splitter)
- Media: Air and Vacuum Only
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Negative Pressure: -750mm Hg (10 Torr)
- Working Pressure Range: 0–990 kPa
Description
This Y splitter enables the clean and efficient branching of pneumatic lines from a single supply into two equal outputs. Its compact Y-shaped design makes it ideal for distributing air or vacuum in tight spaces without compromising flow or performance. Built from durable PBT plastic with nickel-plated brass fittings, this push-in connector provides quick assembly, tool-free removal, and secure, long-term sealing under pressures up to 10 bar.
Key Features & Benefits
- Efficient Air Distribution: Splits one pneumatic line into two with equal flow paths
- Quick Assembly: One-touch push-in design for rapid connection and disconnection
- Robust Materials: High-strength PBT body and nickel-plated brass for corrosion resistance and longevity
- Compact Y Design: Ideal for tight or multi-line setups where space is limited
- Vacuum & Pressure Capable: Operates reliably up to 10 bar and down to -750mm Hg
- Temperature Resistant: Suitable for environments ranging from 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | E (mm) | C (mm) | F (mm) | d (mm) | B (mm) |
| 366449 | 4 | 10 | 10.5 | 15.5 | 15 | 2.8 | 34 |
| 366450 | 6 | 12.8 | 13 | 15.6 | 15.5 | 2.8 | 36.7 |
| 366451 | 8 | 13.8 | 14.5 | 18 | 15.8 | 3.2 | 36.5 |
| 366452 | 10 | 16.8 | 18 | 19.3 | 20.6 | 4 | 39.1 |
| 366453 | 12 | 19.8 | 20 | 21 | 21.3 | 4 | 48.1 |
