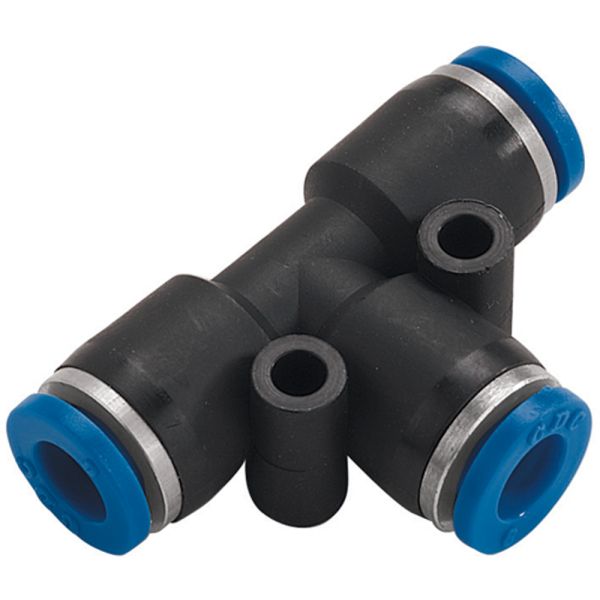

Kelm Push-In Tee 90°
Useful Information
Technical Specification
- Material: PBT Plastic Body with Nickel-Plated Brass Components
- Connection Type: Tube x Tube (90° Tee)
- Media: Air and Vacuum Only
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Negative Pressure: -750mm Hg (10 Torr)
- Working Pressure Range: 0–990 kPa
Description
Designed to split or merge pneumatic lines with efficiency, this 90° tee fitting enables equal tube-to-tube connections at a right angle. With a compact profile and durable construction, it is ideally suited for air and vacuum applications where flow must be directed in three directions. The one-touch push-in mechanism ensures fast installation and removal without tools, while robust materials support reliable, long-term use in varied industrial environments.
Key Features & Benefits
- Three-Way Connection: Facilitates right-angle distribution or convergence of pneumatic flow
- Quick Fit System: One-touch push-in mechanism allows effortless tube connection and release
- Compact & Practical: Ideal for use in space-constrained or complex piping layouts
- Durable Construction: PBT plastic body paired with nickel-plated brass components for extended service life
- Air & Vacuum Compatible: Rated to 10 bar and -750mm Hg for versatile application suitability
- Wide Temperature Range: Operates effectively from 0°C to +60°C
| Product Code | D (mm) | P (mm) | C (mm) | E (mm) | F (mm) | d (mm) |
| 366444 | 4 | 10.3 | 15.5 | 17.5 | 8 | 3.2 |
| 366445 | 6 | 12.6 | 15.6 | 20 | 9.5 | 3.2 |
| 366446 | 8 | 13.8 | 18 | 23 | 10.2 | 3.2 |
| 366447 | 10 | 17.2 | 19.3 | 26.1 | 13 | 3.2 |
| 366448 | 12 | 19.8 | 21 | 26.9 | 13 | 3.2 |
