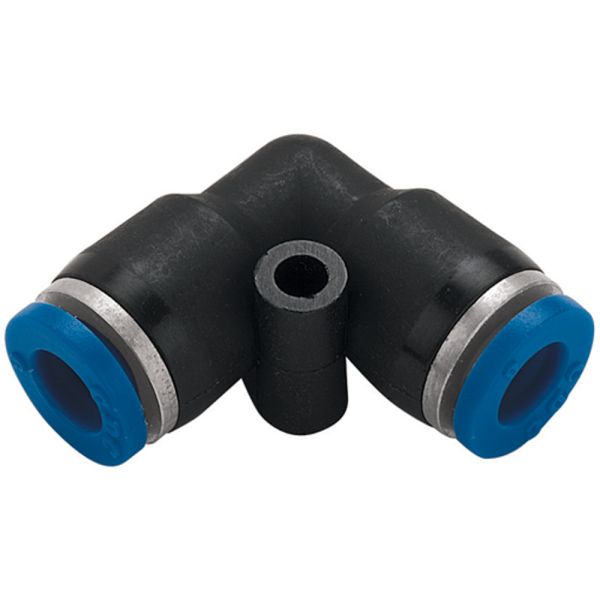

Kelm Push-In Elbow 90°
Useful Information
Technical Specification
- Material: PBT Plastic Body with Nickel-Plated Brass Components
- Connection Type: Tube x Tube (90° Elbow)
- Media: Air and Vacuum Only
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Negative Pressure: -750mm Hg (10 Torr)
- Working Pressure Range: 0–990 kPa
Description
This 90° elbow coupling offers a compact and efficient solution for directional changes in pneumatic tubing. Designed to facilitate tube-to-tube connections at a right angle, it enables clean routing in restricted spaces while maintaining full flow capacity. The one-touch push-in design ensures effortless connection and release, while the combination of high-grade PBT plastic and nickel-plated brass delivers durability in demanding air and vacuum applications up to 10 bar.
Key Features & Benefits
- Right-Angle Design: Allows a precise 90° directional change for improved tubing layout
- Quick Connection: One-touch push-in fitting enables easy installation and disassembly
- Space Saving: Compact elbow profile ideal for confined or angled installations
- High-Quality Materials: PBT plastic body and nickel-plated brass for enhanced durability and corrosion resistance
- Pressure & Vacuum Rated: Handles operating pressures up to 10 bar and negative pressures to -750mm Hg
- Thermal Stability: Operates effectively in environments ranging from 0°C to +60°C
| Product Code | D (mm) | P (mm) | C (mm) | E (mm) | F (mm) | d (mm) |
| 366439 | 4 | 10.3 | 15.5 | 17.5 | 8 | 3.2 |
| 366440 | 6 | 12.8 | 15.6 | 20.5 | 9.5 | 3.2 |
| 366441 | 8 | 13.8 | 18 | 22.8 | 10.2 | 3.2 |
| 366442 | 10 | 17.2 | 19.3 | 26.3 | 13 | 3.2 |
| 366443 | 12 | 19.8 | 21 | 27.8 | 13 | 3.2 |
