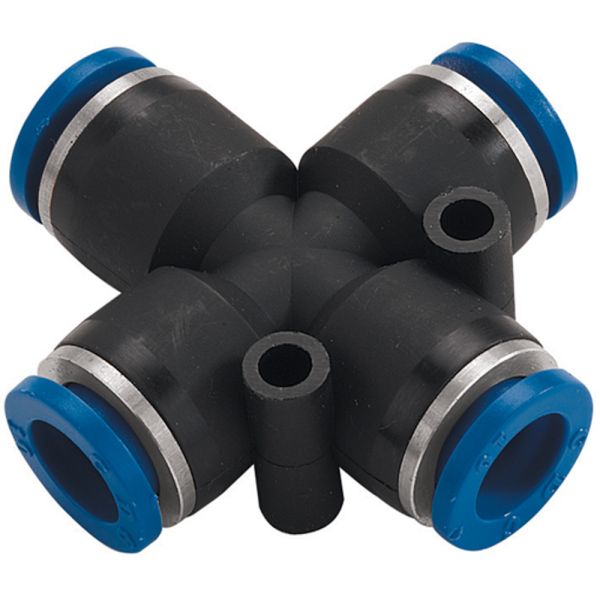

Kelm Push-In Cross 90°
Useful Information
Technical Specification
- Material: PBT Plastic Body with Nickel-Plated Brass Components
- Connection Type: Tube x Tube (Equal Cross Connector)
- Media: Air and Vacuum Only
- Maximum Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Negative Pressure: -750mm Hg (10 Torr)
- Working Pressure Range: 0–990 kPa
Description
This 90° cross connector enables four-way pneumatic tubing connections, ideal for distributing airflow across multiple lines in a compact, centralised layout. The one-touch push-in design offers fast, secure tube connections with effortless disconnection, requiring no tools. Constructed from robust PBT plastic and nickel-plated brass, it supports air and vacuum systems up to 10 bar, delivering clean, leak-free performance in demanding industrial settings.
Key Features & Benefits
- Four-Way Configuration: Connects and distributes tubing in perpendicular directions
- One-Touch Fitting: Simple push-to-connect mechanism for quick, tool-free assembly
- Durable Construction: PBT body and nickel-plated brass components ensure mechanical strength and corrosion resistance
- Efficient Space Use: Ideal for use in confined or centralised system layouts
- Pressure & Vacuum Ready: Suitable for systems operating up to 10 bar and down to -750mm Hg
- Wide Temperature Range: Performs reliably from 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | E (mm) | C (mm) | F (mm) | d (mm) |
| 366458 | 4 | 10 | 17.7 | 15.5 | 8 | 2.2 |
| 366459 | 6 | 12.8 | 20.5 | 15.6 | 9.5 | 2.8 |
| 366460 | 8 | 13.8 | 22.8 | 18 | 10.2 | 2.8 |
| 366461 | 10 | 16.8 | 26.3 | 19.3 | 12 | 4 |
| 366462 | 12 | 19.8 | 29.3 | 21 | 13 | 4 |
