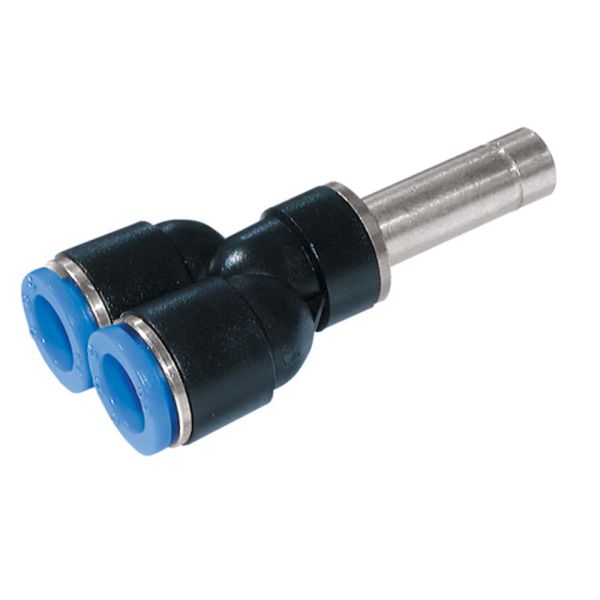

Kelm Tube x Stem Push-In Y Splitter
Useful Information
Technical Specification
- Type: Y Splitter - Tube x Stem
- Material: PBT (Polybutylene Terephthalate) body with nickel-plated brass components
- Connection Type: One-touch push-in
- Max. Operating Pressure: 10 bar
- Operating Temperature: 0°C to +60°C
- Media Compatibility: Air and vacuum only
- Negative Pressure Resistance: Up to -750mm Hg (-750 Torr)
Description
This Y splitter fitting enables a single pneumatic line to branch into two directions, providing a streamlined solution for distributing compressed air or vacuum flow. Its compact, push-in design allows quick, tool-free connections and disconnections, improving system efficiency during maintenance or reconfiguration. Built from robust PBT plastic and fitted with nickel-plated brass elements, this splitter ensures long-lasting performance and reliable sealing under demanding industrial conditions.
Key Features & Benefits
- Dual Outlet Y Configuration: Efficiently splits flow from one source into two directions
- One-Touch Push-In Design: Enables fast, secure connections without tools
- Durable Construction: PBT body with brass components for strength and corrosion resistance
- Vacuum and Air Compatible: Rated for full vacuum and pressures up to 10 bar
- Compact Form: Ideal for space-limited pneumatic installations
- Metric Compatibility: Available in standard tube sizes from 4mm to 12mm
| Product Code | D (mm) | B (mm) | C (mm) | E (mm) | F (mm) | d (mm) |
| 366485 | 4 | 47.5 | 15.5 | 10.5 | 15 | 2.8 |
| 366486 | 6 | 55 | 15.6 | 13 | 15.5 | 2.8 |
| 366487 | 8 | 55.3 | 18 | 14.5 | 15.8 | 3.2 |
| 366488 | 10 | 70.1 | 19.3 | 18 | 20.6 | 4 |
| 366489 | 12 | 73.3 | 21 | 20 | 21.3 | 4 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
