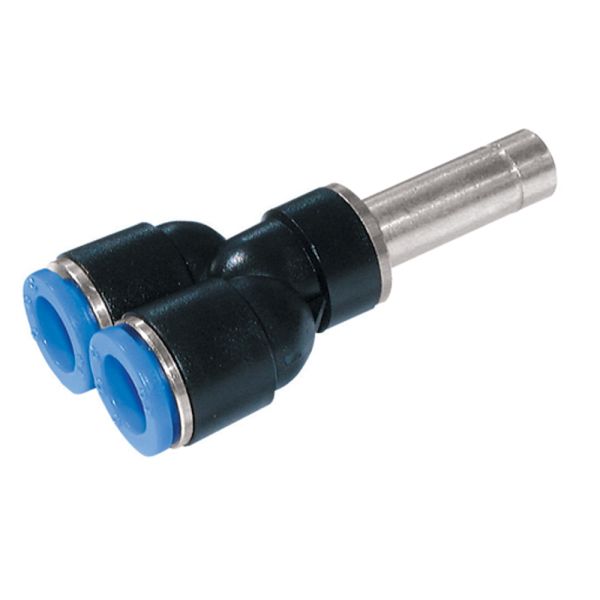

Kelm Reducing Y Splitter
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Plastic PBT
- Media: Air and Vacuum Only
- Tube x Stem
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D1 (mm) | D2 (mm) | P (mm) | B (mm) | C (mm) | E (mm) | F (mm) | d (mm) |
| 366490 | 6 | 4 | 10.5 | 52.5 | 15.5 | 10.5 | 14.4 | 2 |
| 366491 | 8 | 6 | 13 | 55 | 15.5 | 13 | 17.5 | 2.7 |
| 366492 | 10 | 8 | 14.5 | 58.8 | 18 | 14.5 | 19.5 | 4 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Plastic Body made from PBT resin.
