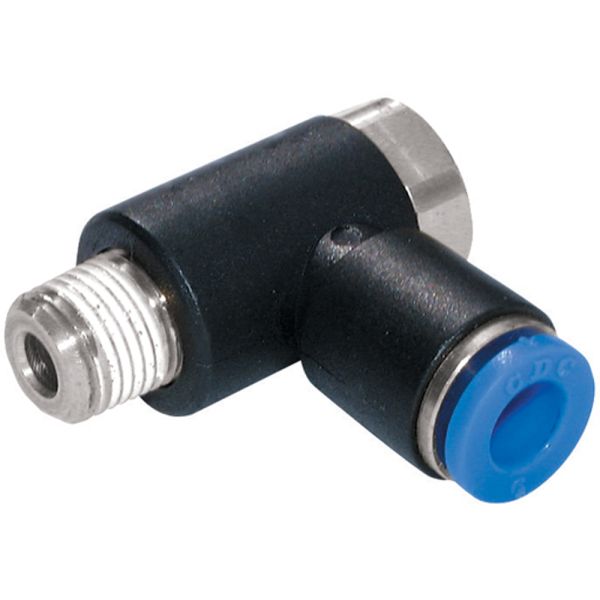

Kelm Banjo Coupling NPT M
Useful Information
Technical Specification
- Material: Nickel-plated brass with POM release sleeve
- Thread Type: NPT male
- Design: Banjo coupling for multi-directional pneumatic connection
- Operating Pressure: 0–10 bar
- Media: Air and vacuum only
- Negative Pressure: -750 mmHg (-750 Torr)
- Operating Temperature: 0°C to +60°C
- Connection: One-touch push-in (metric tube to NPT male thread)
- Sealant: Tapered threads precoated with Teflon
Description
Designed for tight-space pneumatic systems, this banjo coupling features a rotating push-in connection, allowing for flexible tube orientation around a fixed male NPT thread. The one-touch push-in mechanism enables quick and secure tubing installation, while the swivel motion makes it ideal for dynamic routing or compact assemblies. With a corrosion-resistant nickel-plated brass body and Teflon-precoated threads, this fitting ensures reliable, leak-free performance in compressed air and vacuum applications.
Key Features & Benefits
- Compact banjo design for space-saving tube routing
- Swivel push-in port allows 360° adjustment for flexible alignment
- One-touch push-in connection simplifies assembly and maintenance
- Tapered male NPT thread precoated with Teflon for immediate sealing
- Nickel-plated brass construction resists wear and corrosion
- POM release sleeve provides easy and secure disconnection
- Suitable for air and vacuum use only
| Product Code | D (mm) | R (Thread) | P (mm) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | K (mm) |
| 366839 | 4 | 1/8 | 10.5 | 8 | 12 | 15.5 | 21.8 | 12 | 14.5 |
| 366840 | 6 | 1/8 | 13 | 8 | 12 | 15.6 | 23 | 12 | 14.5 |
| 366841 | 6 | 1/4 | 13 | 11 | 12 | 15.6 | 25.5 | 14 | 18.2 |
| 366842 | 8 | 1/8 | 14.5 | 8 | 12 | 18 | 24.6 | 12 | 14.5 |
| 366843 | 8 | 1/4 | 14.5 | 11 | 12 | 18 | 26.8 | 14 | 18.2 |
| 366844 | 8 | 3/8 | 14.5 | 12 | 15.4 | 18 | 28.8 | 11 | 22 |
| 366845 | 10 | 3/8 | 18 | 12 | 15.4 | 20 | 31.6 | 22 | 22 |
| 366847 | 12 | 1/4 | 21 | 11 | 12 | 21.4 | 31 | 22 | 18.2 |
| 366849 | 12 | 1/2 | 21 | 15 | 17.5 | 21.4 | 35.2 | 22 | 27.4 |
