Kelm Stud Swivel Elbow 90° M
Useful Information
Technical Specification
- Material: Nickel-Plated Brass with POM Sleeve
- Media Compatibility: Air and Vacuum Only
- Thread Type: Metric Male (M5x0.8/M6x1)
- Tube Connection: 4mm or 6mm Outside Diameter
- Maximum Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Thread Gender: Male
- Fitting Type: 90° Swivel Stud Elbow
- Negative Pressure Capability: -750mm Hg (-750 Torr)
Description

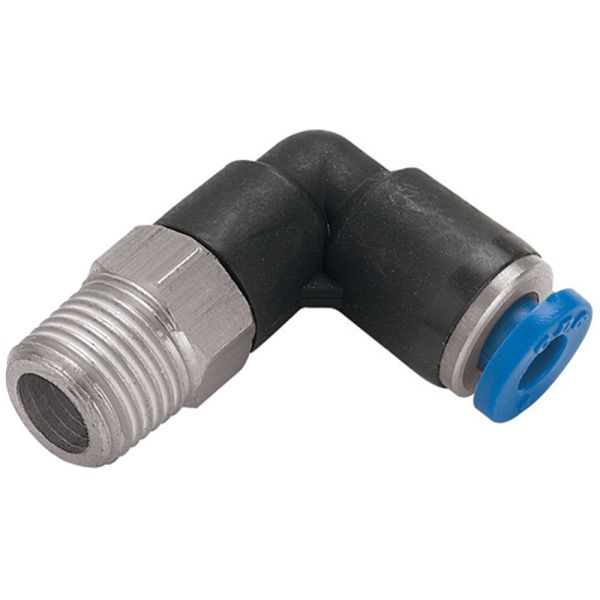

Ideal for directional changes in compact pneumatic systems, this swivel elbow fitting offers a full 90° turn with integrated thread rotation, allowing precise positioning without kinking or tube strain. The one-touch push-in mechanism supports quick, tool-free tube connection, while the nickel-plated brass body ensures durability and resistance to corrosion. With factory-applied Teflon treatment and a high-strength POM release sleeve, this fitting ensures reliable, leak-free operation even under vacuum conditions.
Key Features & Benefits
- Adjustable Positioning: Swivel design allows 360° thread rotation for optimal tube routing
- Space-Saving Design: 90° elbow enables directional changes in tight installation zones
- Rapid Installation: One-touch push-in mechanism provides fast, tool-free connection
- Robust Sealing: Teflon-treated threads enhance leak prevention
- Durable Build: Nickel-plated brass resists corrosion and mechanical wear
- Vacuum-Compatible: Operates in negative pressure environments down to -750mm Hg
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366318 | 4 | 10 | M5x0.8 | 4 | 25 | 15.5 | 17.5 | 8 | 10 | 3.2 |
| 366319 | 4 | 10 | M6x1 | 5 | 26 | 15.5 | 17.5 | 8 | 10 | 3.2 |
| 366320 | 6 | 12.8 | M5x0.8 | 4 | 27.5 | 15.6 | 20.5 | 9.5 | 12 | 3.2 |
| 366321 | 6 | 12.8 | M6x1 | 5 | 28.5 | 15.6 | 20.5 | 9.5 | 12 | 3.2 |
