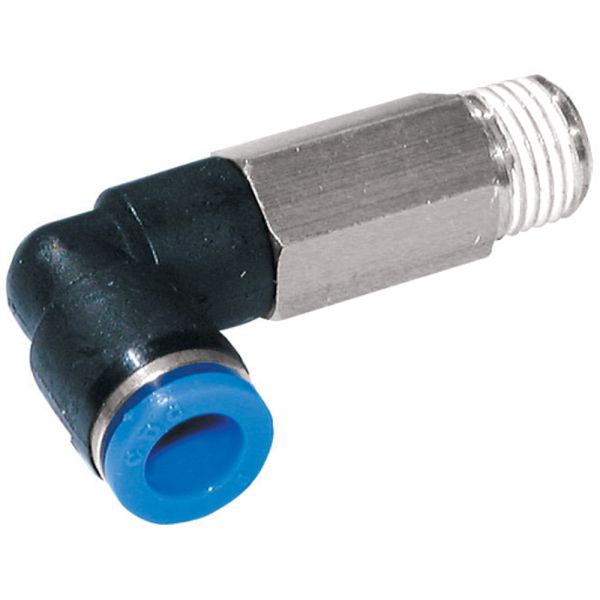

Stud Swivel Elbow 90° Extended M

Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Nickle Plated Brass
  • Media: Air and Vacuum Only
  • Metric Male Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

male stud swivel elbows extended bspt

Product Code D (mm) D1 (mm) R (Thread) A (mm) B (mm) C (mm) E (mm) F (mm) H (mm) d (mm)
366322 4 10 M5x0.8 4 35.5 15.5 17.5 8 10 3.2
366323 6 12.8 M5x0.8 4 40.5 15.6 20.5 9.5 12 3.2
366324 6 12.8 M6x1 5 41.5 15.6 20.5 9.5 12 3.2



Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Nickel-plated brass fittings ensure long product life.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
366322KM Male Stud Swivel Elbow Extended Metric 4mm x M5 £4.26 60% £1.70
366323KM Male Stud Swivel Elbow Extended Metric 6mm x M5 £4.77 60% £1.91
366324KM Male Stud Swivel Elbow Extended Metric 6mm x M6 £4.01 60% £1.60
