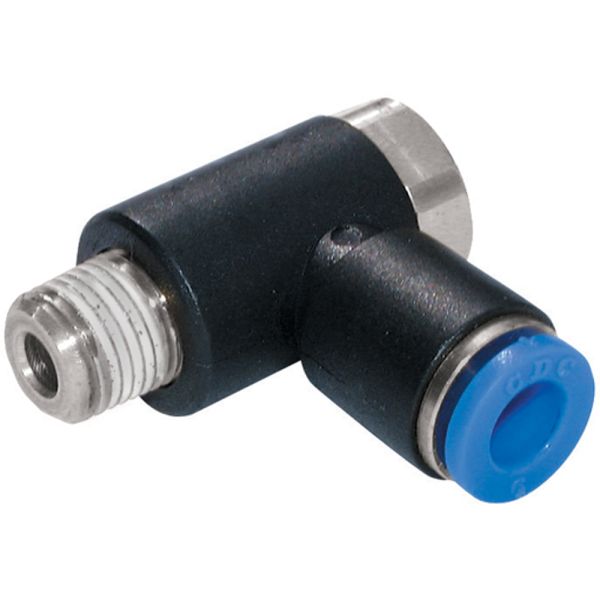

Kelm Metric Single Banjo Coupling M
Useful Information
Technical Specification
- Material: Nickel-Plated Brass with POM Sleeve
- Media Compatibility: Air and Vacuum Only
- Thread Type: Metric Male (M5/M6x1)
- Tube Connection: 4mm or 6mm Outside Diameter
- Maximum Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Thread Gender: Male
- Fitting Type: Single Banjo Coupling
- Negative Pressure Capability: -750mm Hg (-750 Torr)
Description
Designed for optimal flexibility in confined pneumatic installations, this single banjo coupling enables 360° directional tube positioning without stressing the tubing. It features a male metric thread combined with a one-touch push-in tube port for fast, tool-free connection. The compact profile is ideal for tight spaces, and the nickel-plated brass body, reinforced with a robust POM sleeve, ensures long-term performance and corrosion resistance in both air and vacuum applications.
Key Features & Benefits
- Full Rotational Range: Banjo design allows 360° rotation for versatile tube orientation
- Space-Saving Design: Perfect for compact systems and panel-mounted installations
- Quick Connection: One-touch push-in port enables instant and secure tubing assembly
- Durable Construction: Nickel-plated brass resists corrosion and wear
- Reliable Sealing: Teflon-treated threads enhance leak-proof performance
- Vacuum Compatible: Operates in negative pressure systems down to -750mm Hg
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | K (mm) |
| 366328 | 4 | 10 | M5x0.8 | 4 | 9.2 | 15.5 | 19.7 | 8 | 10 |
| 366329 | 4 | 10 | M6x1 | 5 | 9.2 | 15.5 | 19.7 | 8 | 10 |
| 366330 | 6 | 12.8 | M5x0.8 | 4 | 9.2 | 15.6 | 22.5 | 8 | 10 |
| 366331 | 6 | 12.8 | M6x1 | 5 | 9.2 | 15.6 | 22.5 | 8 | 10 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
