Kelm Metric Bulkhead Coupling F
Useful Information
Technical Specification
- Material: Nickel-Plated Brass with POM Sleeve
- Media Compatibility: Air and Vacuum Only
- Thread Type: Metric Female (M5x0.8/M6x1)
- Tube Connection: 4mm or 6mm Outside Diameter
- Maximum Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Thread Gender: Female
- Mounting Type: Bulkhead with Locknut
- Negative Pressure Capability: -750mm Hg (-750 Torr)
Description

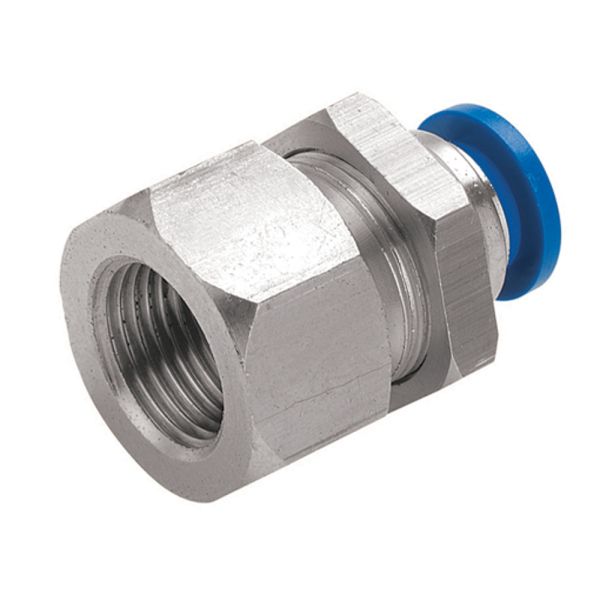

Designed for secure and efficient panel-mounted pneumatic connections, this bulkhead coupling enables easy integration through enclosures or walls. The one-touch push-in fitting offers quick tube installation without tools, making it ideal for tight or enclosed spaces. Featuring a nickel-plated brass body and a robust plastic sleeve, it delivers dependable sealing and resistance to corrosion. The locknut ensures firm bulkhead mounting for long-term, vibration-resistant performance.
Key Features & Benefits
- Panel Integration: Bulkhead design supports through-wall or panel mounting with included locknut
- Quick Assembly: One-touch push-in connection streamlines tube installation and removal
- Compact Fit: Internal hex design allows for convenient installation in confined areas
- Long-Term Durability: Nickel-plated brass construction ensures corrosion resistance and extended life
- Versatile Use: Suitable for air and vacuum systems operating up to 10 bar and -750mm Hg
| Product Code | D (mm) | D1 (mm) | R | A (mm) | B (mm) | C (mm) | G (mm) | H1 (mm) | H2 (mm) | M (mm) |
| 366315 | 4 | 10 | M5x0.8 | 5 | 22 | 16 | 7 | 14 | 14 | M12x1 |
| 366316 | 6 | 12.8 | M5x0.8 | 5 | 23 | 17 | 7 | 14 | 17 | M14x1 |
| 366317 | 6 | 12.8 | M6x1 | 6 | 24 | 17 | 8 | 14 | 17 | M14x1 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
