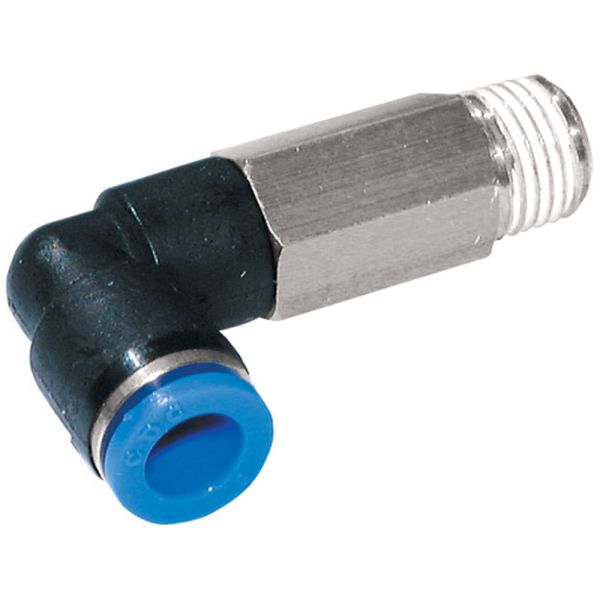

Kelm Stud Swivel Elbow 90° Extended M
Useful Information
Technical Specification
- Material: Nickel-Plated Brass Body with POM Sleeve
- Connection Type: BSPT Male Thread x Metric Tube (Push-in)
- Fitting Style: 90° Extended Swivel Elbow Stud
- Media Compatibility: Air & Vacuum Only
- Max. Operating Pressure: 10 bar
- Operating Temperature Range: 0°C to +60°C
- Negative Pressure: -750mmHg (-750Torr)
- Thread Seal: Precoated Tapered Thread with Teflon Sealant
- One-Touch Push-to-Connect Mechanism
Description
Designed for greater reach and flexibility in tight pneumatic installations, this extended 90° swivel elbow enables clean and efficient tube routing from BSPT threaded ports. With a longer stud body, it provides additional clearance, reducing stress on tubing and enhancing accessibility. The swivel action allows easy directional adjustment after installation, while the push-to-connect mechanism ensures rapid tube fitting with minimal effort. Built from nickel-plated brass and featuring a Teflon-sealed thread, it delivers robust sealing performance and durability in air and vacuum applications.
Key Features & Benefits
- Extended Reach: Longer stud body offers increased clearance and improved tubing alignment
- Swivel Functionality: Allows post-installation directional adjustment in compact spaces
- Quick Installation: One-touch push-in design enables fast tube connection without tools
- High Durability: Nickel-plated brass ensures corrosion resistance and long service life
- Pre-Sealed Threads: Leak-free connections with pre-applied Teflon
- Precision Fit: Internal hex design allows for easy wrenching during assembly
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | d (mm) |
| 366220 | 4 | 10 | 1/8 | 7.5 | 35.5 | 15.5 | 17.5 | 8 | 10 | 3.2 |
| 366221 | 6 | 12.8 | 1/8 | 7.5 | 40.5 | 15.6 | 20.5 | 9.5 | 12 | 3.2 |
| 366222 | 6 | 12.8 | 1/4 | 9 | 43.5 | 15.6 | 20.5 | 9.5 | 14 | 3.2 |
| 366223 | 8 | 13.8 | 1/8 | 7.5 | 44 | 18 | 22.5 | 10.2 | 14 | 3.2 |
| 366224 | 8 | 13.8 | 1/4 | 9 | 45.5 | 18 | 22.5 | 10.2 | 14 | 3.2 |
| 366225 | 10 | 16.8 | 1/8 | 7.5 | 51.2 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366226 | 10 | 16.8 | 1/4 | 9 | 52.7 | 19.3 | 26.3 | 13 | 17 | 3.2 |
| 366227 | 12 | 19.8 | 1/4 | 9 | 55.5 | 21 | 27.8 | 13 | 19 | 3.2 |
| 366228 | 12 | 19.8 | 3/8 | 11 | 58 | 21 | 27.8 | 13 | 19 | 3.2 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
