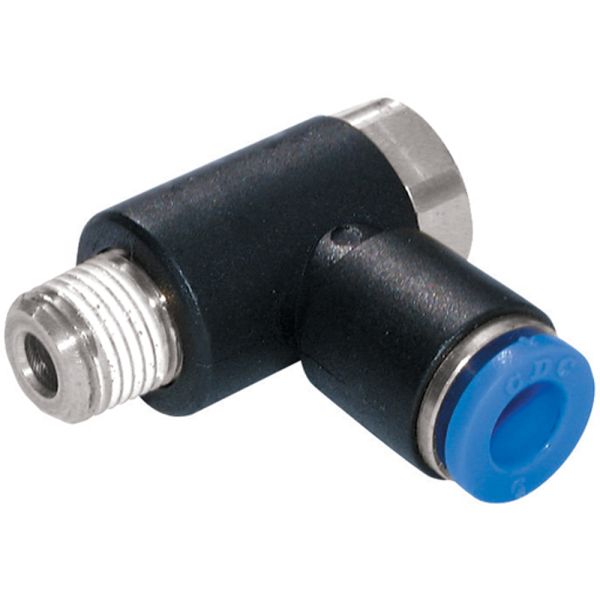

Kelm Single Banjo Coupling M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickle Plated Brass
- Media: Air and Vacuum Only
- BSPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | K (mm) |
| 366273 | 4 | 10 | 1/8 | 7.5 | 12 | 15.5 | 21.8 | 10 | 14.5 |
| 366274 | 6 | 12.8 | 1/8 | 7.5 | 12 | 15.6 | 23 | 10 | 14.5 |
| 366275 | 6 | 12.8 | 1/4 | 9 | 12 | 15.6 | 25.5 | 14 | 18.2 |
| 366276 | 6 | 12.8 | 3/8 | 11 | 15.4 | 15.6 | 27.1 | 19 | 22 |
| 366277 | 8 | 13.8 | 1/8 | 7.5 | 12 | 18 | 24.6 | 10 | 14.5 |
| 366278 | 8 | 13.8 | 1/4 | 9 | 12 | 18 | 26.8 | 14 | 18.2 |
| 366279 | 8 | 13.8 | 3/8 | 11 | 15.4 | 18 | 28.8 | 19 | 22 |
| 366280 | 10 | 16.8 | 1/4 | 9 | 12 | 19.3 | 31 | 14 | 18.2 |
| 366281 | 10 | 16.8 | 3/8 | 11 | 15.4 | 19.3 | 31 | 19 | 22 |
| 366282 | 10 | 16.8 | 1/2 | 13 | 17.5 | 19.3 | 34 | 24 | 27.4 |
| 366283 | 12 | 19.8 | 1/4 | 9 | 12 | 21 | 31.8 | 14 | 18.2 |
| 366284 | 12 | 19.8 | 3/8 | 11 | 15.4 | 21 | 34 | 19 | 22 |
| 366285 | 12 | 19.8 | 1/2 | 13 | 17.5 | 21 | 35.8 | 24 | 27.4 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Tapered fittings are precoated with Teflon sealant.
Nickel-plated brass fittings ensure long product life.
