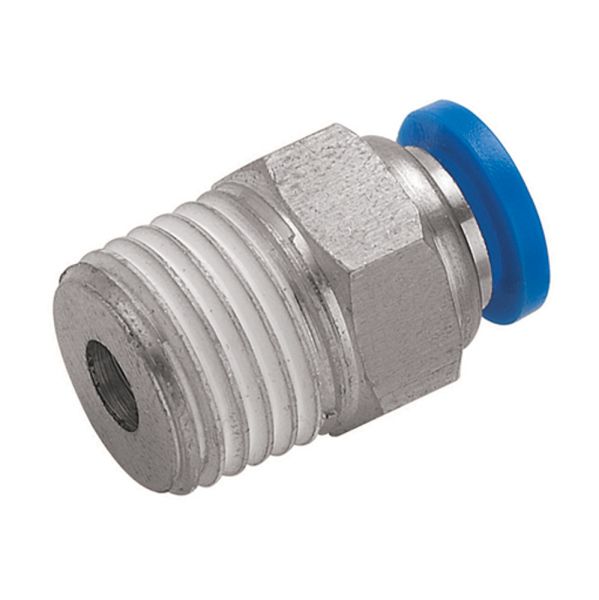

Kelm Stud Coupling M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- UNF Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (inch) | D1 (mm) | R (thread) | A (mm) | B (mm) | C (mm) | H (mm) |
| 366680 | 1/8 | 10 | 10-32 | 4 | 21.5 | 16 | 7/16 |
| 366681 | 5/32 | 10 | 10-32 | 4 | 21.5 | 16 | 7/16 |
| 366683 | 1/4 | 12.8 | 10-32 | 4 | 24 | 17 | 1/2 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
