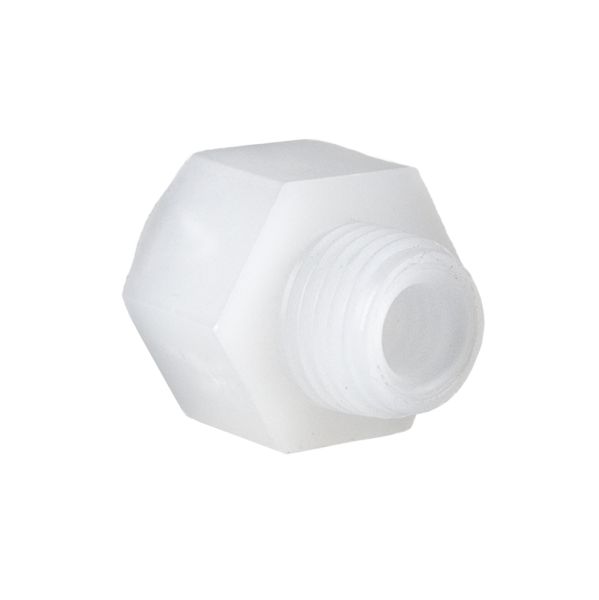

Bush F x M BSPT
Useful Information
Technical Specification
- Material: PVDF (Polyvinylidene Fluoride)
- Manufacturer: Tefen
- Connection Type: BSPT Female x Male (Bush)
- Thread Type: BSPT (British Standard Pipe Taper)
- Thread Genders: Female x Male
- Working Temperature: -20°C to +120°C
- Max. Working Pressure: Up to 14 bar (200 psi) at +12°C
Description
This BSPT bush enables the connection of male and female threaded components of different or equal sizes, offering versatility in pneumatic and hydraulic system configurations. Manufactured from high-grade PVDF, it provides superior resistance to chemicals and thermal stress. The robust design ensures secure and long-lasting thread engagement, even in aggressive environments.
Key Features & Benefits
- Connects mismatched or equal BSPT threads reliably
- Excellent resistance to acids, solvents, and industrial chemicals
- High durability in extreme temperatures and corrosive conditions
- Ideal for chemical processing, water treatment, and industrial setups
- Leak-free performance with strong resistance to mechanical stress
- More chemically resilient than nylon fittings in demanding systems
| Product Code | M BSPT (inch) | F BSPT (inch) | L (mm) | SW |
| 378101 | 1/8 | 3/8 | 24 | 14 |
| 378102 | 1/4 | 1/8 | 22.1 | 17 |
| 378103 | 1/4 | 1/4 | 24 | 17 |
| 378104 | 1/4 | 3/8 | 24.8 | 17 |
| 378105 | 3/8 | 1/8 | 23.1 | 22 |
| 378106 | 3/8 | 1/4 | 25.2 | 22 |
| 378107 | 3/8 | 3/8 | 25.7 | 22 |
| 378108 | 3/8 | 1/2 | 28.2 | 22 |
| 378109 | 1/2 | 1/4 | 27.3 | 26 |
| 378111 | 1/2 | 1/2 | 30.6 | 26 |
