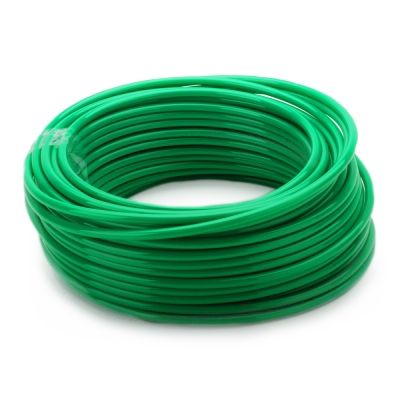

Tefen Nylon Tube Green
Useful Information
Technical Specification
- Material: High grade Nylon 12 granules
- Colour: Green
- Operating Temperature: -40°C to +80°C
- Conforms To: BS 5409 and DIN 73378
- Shore Hardness: 65 D
- Melting Point: 173°C
- Density: 1.02 g/cm³
- Water Absorption: 1.4%
- Humidity Absorption: 0.7%
- Pressure Ratings (at 20°C): Up to 400 psi / 27.6 bar
Description
Designed for demanding industrial and pneumatic applications, this green nylon tubing offers excellent resistance to abrasion, weathering, and a wide range of chemicals. Its low moisture absorption and hydrolysis resistance make it especially suitable for use in moist or humid environments, including food, beverage, and brewing systems. With high impact strength and dimensional stability, it ensures reliable performance in fuel lines, lubrication systems, pneumatic circuits, and air brake installations. This tubing is fully compatible with push-in fittings for easy, leak-free connection.
Key Features & Benefits
- Robust abrasion and impact resistance
- Excellent chemical resistance including oils, fuels, acids, and alkalis
- UV-stabilised and weather-resistant for outdoor use
- High performance in moisture-rich and humid environments
- Hydrolysis and zinc chloride resistant
- Maintains dimensional accuracy with excellent diameter sensitivity
- Compatible with standard push-fit and pneumatic fittings
- 4:1 safety factor for assured reliability
- Ideal for pneumatic, lubrication, air brake, and food industry systems
| Dimensions and Pressure Ratings | |||||
| Product Code | Outside Diameter (mm) | Internal Diameter (mm) | Pressure Rating (psi) | Pressure Rating (bar) | Length (m) |
| 358805 | 4 | 2.5 | 400 | 27.6 | 30 |
| 358823 | 6 | 4 | 350 | 24.1 | 30 |
| 358874 | 6 | 4 | 350 | 24.1 | 100 |
| 358831 | 8 | 6 | 350 | 24.1 | 30 |
| 358880 | 8 | 6 | 350 | 24.1 | 100 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
