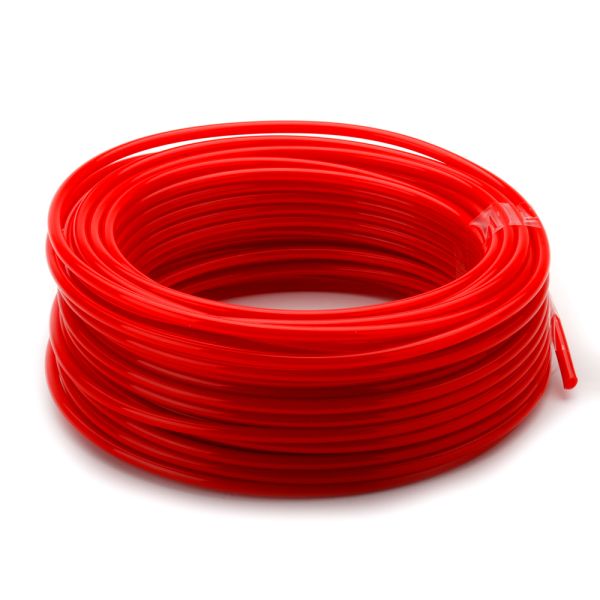

Tefen Nylon Tube Red
Useful Information
Technical Specification
- Material: High grade Nylon 12 granules
- Colour: Red
- Operating Temperature Range: -40°C to +80°C
- Conformance: BS 5409 and DIN 73378
- Density: 1.02 g/cm³
- Shore Hardness: 65 D
- Melting Point: 173°C
- Water Absorption: 1.4%
- Humidity Absorption: 0.7%
- Pressure Ratings (at 20°C): Up to 400 psi / 27.6 bar
Description
Manufactured from robust Nylon 12, this flexible red tubing offers exceptional abrasion resistance and stability in humid environments. Designed for precision and durability, it performs reliably across a wide temperature range and is ideal for pneumatic systems, lubrication lines, fuel applications, and even in food-grade environments. Its compatibility with push-in fittings makes installation straightforward, and its structural integrity remains uncompromised even in chemically aggressive or low-temperature conditions.
Key Features & Benefits
- Outstanding resistance to abrasion, moisture, and weathering
- Excellent performance in low temperatures and high-pressure environments
- Resistant to fuels, oils, greases, zinc chloride, and dilute acids/alkalis
- Compliant with BS 5409 and DIN 73378 standards
- UV and hydrolysis resistant
- Ideal for use in pneumatic control, fuel and lubrication systems, and food/beverage industries
- Easy integration with push-in fittings for rapid assembly
- Maintains dimensional stability with excellent diameter sensitivity
| Dimensions and Pressure Ratings | |||||
| Product Code | Outside Diameter (mm) | Internal Diameter (mm) | Pressure Rating (psi) | Pressure Rating (bar) | Length (m) |
| 358806 | 4 | 2.5 | 400 | 27.6 | 30 |
| 358824 | 6 | 4 | 350 | 24.1 | 30 |
| 358875 | 6 | 4 | 350 | 24.1 | 100 |
| 358832 | 8 | 6 | 350 | 24.1 | 30 |
| 358881 | 8 | 6 | 350 | 24.1 | 100 |
| 358847 | 10 | 8 | 220 | 15.2 | 30 |
| 358841 | 10 | 7 | 300 | 20.7 | 30 |
| 358887 | 10 | 8 | 220 | 15.2 | 100 |
| 358854 | 12 | 9 | 250 | 17.2 | 30 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
