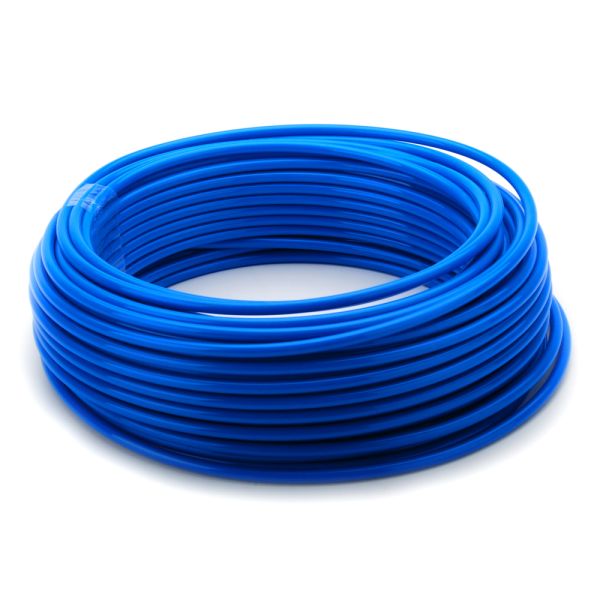

Tefen Nylon Tube Blue
Useful Information
Technical Specification
- Material: High grade Nylon 12 granules
- Colour: Blue
- Operating Temperature: -40°C to +80°C
- Standards: BS 5409 and DIN 73378
- Shore Hardness: 65 D
- Melting Point: 173°C
- Density: 1.02 g/cm³
- Water Absorption: 1.4%
- Humidity Absorption: 0.7%
- Pressure Ratings (at 20°C): Up to 400 psi / 27.6 bar
Description
Built from high-grade Nylon 12, this flexible blue tubing offers robust performance for both industrial and commercial applications. It features exceptional abrasion resistance and is chemically stable in the presence of diluted acids, alkalis, fuels, and oils. Designed for use in air brake systems, pneumatic controls, lubrication circuits, and food or beverage processing environments, it maintains integrity under demanding conditions. Its dimensional precision ensures easy compatibility with push-in fittings, delivering both efficiency and reliability across various installations.
Key Features & Benefits
- Excellent resistance to abrasion, chemicals, and weathering
- UV-stabilised for outdoor use and long-term durability
- High pressure rating with a 4:1 safety factor
- Maintains performance in high-moisture and humid environments
- Compatible with a wide range of industrial fluids
- Quick and easy to install with push-fit connectors
- Hydrolysis and zinc chloride resistant
- High impact strength at low temperatures
- Stable internal diameter for consistent flow performance
| Dimensions and Pressure Ratings | |||||
| Product Code | Outside Diameter (mm) | Internal Diameter (mm) | Pressure Rating (psi) | Pressure Rating (bar) | Length (m) |
| 358804 | 4 | 2.5 | 400 | 27.6 | 30 |
| 358810 | 5 | 3 | 400 | 27.6 | 30 |
| 358822 | 6 | 4 | 350 | 24.1 | 30 |
| 358873 | 6 | 4 | 350 | 24.1 | 100 |
| 358890 | 6 | 4 | 350 | 24.1 | 500 |
| 358830 | 8 | 6 | 350 | 24.1 | 30 |
| 358879 | 8 | 6 | 350 | 24.1 | 100 |
| 358892 | 8 | 6 | 350 | 24.1 | 500 |
| 358845 | 10 | 8 | 220 | 15.2 | 30 |
| 358839 | 10 | 7 | 300 | 20.7 | 30 |
| 358885 | 10 | 8 | 220 | 15.2 | 100 |
| 358852 | 12 | 9 | 250 | 17.2 | 30 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
