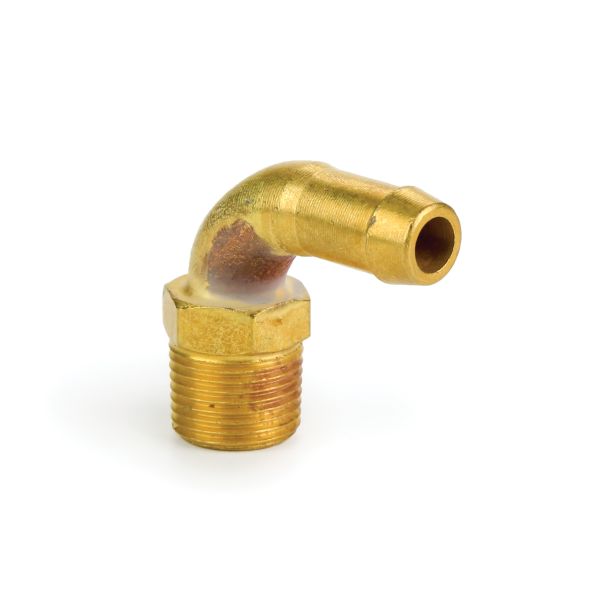

Elbow 90° Swept M Threaded BSPT
Useful Information
Technical Specification
- Material: Brass
- Thread Type: Male BSPT (British Standard Pipe Taper)
- Hose Tail: Swept single-barb metric connection
- Elbow Angle: 90°, swept design for smoother flow
- Size Range: 1/8″ × 8 mm to 3/8″ × 10 mm
- Compatible Media: Air, water, oil, and general fluid applications
- Pressure/temperature: Dependent on hose selection (please see the PVC Braided Hose section for more information)
Description
Engineered for efficient fluid flow and reduced turbulence, this swept 90° brass elbow provides a smooth transition from flexible hose to threaded female fittings. The male BSPT taper thread ensures a secure connection, while the swept design of the hose tail minimises pressure loss and flow restriction-particularly useful in compressed air and fluid transfer lines. Suitable for industrial, automotive, and maintenance systems, this fitting is compatible with PVC braided hoses and a wide variety of flexible tubing.
Key Features & Benefits
- Swept elbow profile promotes smoother internal flow, reducing pressure drop
- Tapered BSPT male thread creates a reliable seal in threaded systems
- Durable brass construction ensures corrosion-resistance and built for long service life
- Metric hose tail with a secure barb ensures tight hose fit and prevents blow-off
- Compact 90° connection ideal for confined or angled installations
- Broad fluid compatibility suitable for compressed air, water, oil, and other liquids
- Certified to international standards meets ISO 7.1, BS 21, and DIN 2999
